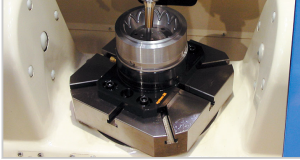

Macro HP en standaard, vast referentiesysteem voor kleinere machines

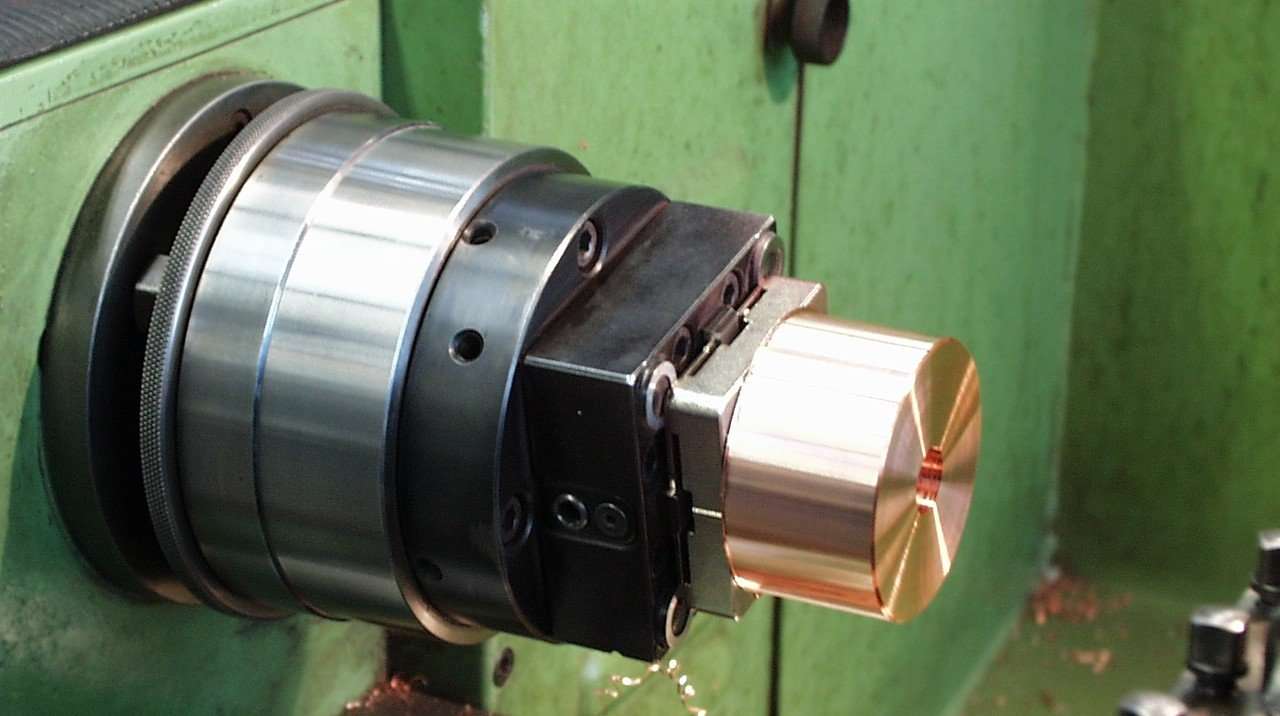

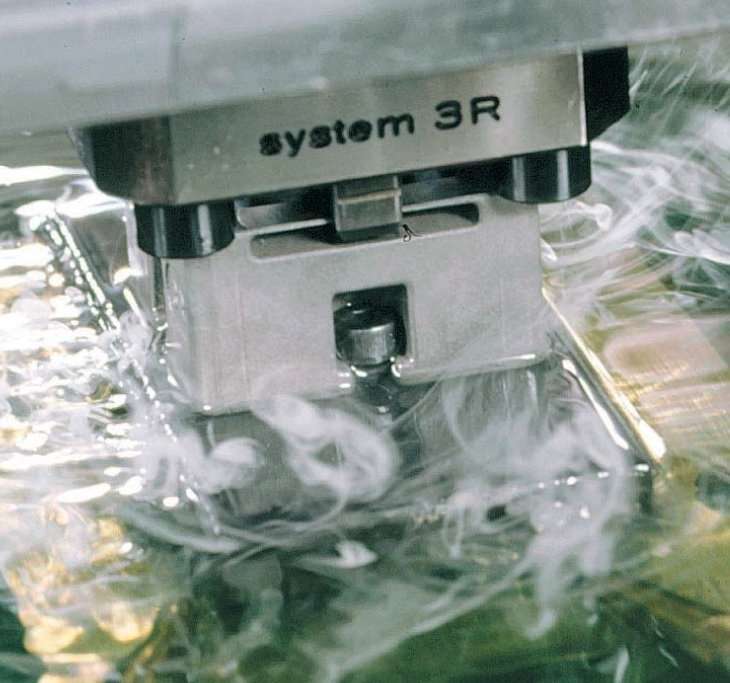

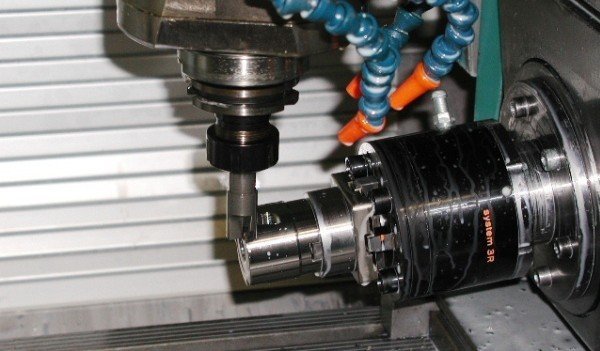

- Wie wil concurreren in de wereldwijde maakindustrie moet ieder aspect van efficiëntie bestuderen.
- Waar het om gaat is om bij iedere machine zoveel mogelijk spiluren te realiseren. De machines zijn alleen winstgevend wanneer ze produceren – alleen dan!
- Een referentiesysteem dat de insteltijden reduceert tot enkele minuten – One Minute Set-up.
- Macro met referenties van gecemtnteerd hardmetaal wat een ongeëvenaarde slijtweerstand en levensduur geeft.
- Een systeem dat de doorlooptijd minimaliseert, en dat dankzij zijn precisie, uitval praktisch elimineert.
- Een systeem dat flexibiliteit en winstgevendheid vergroot.
- Een systeem dat de concurrentiekracht verhoogt en het succes van zijn gebruikers garandeert.

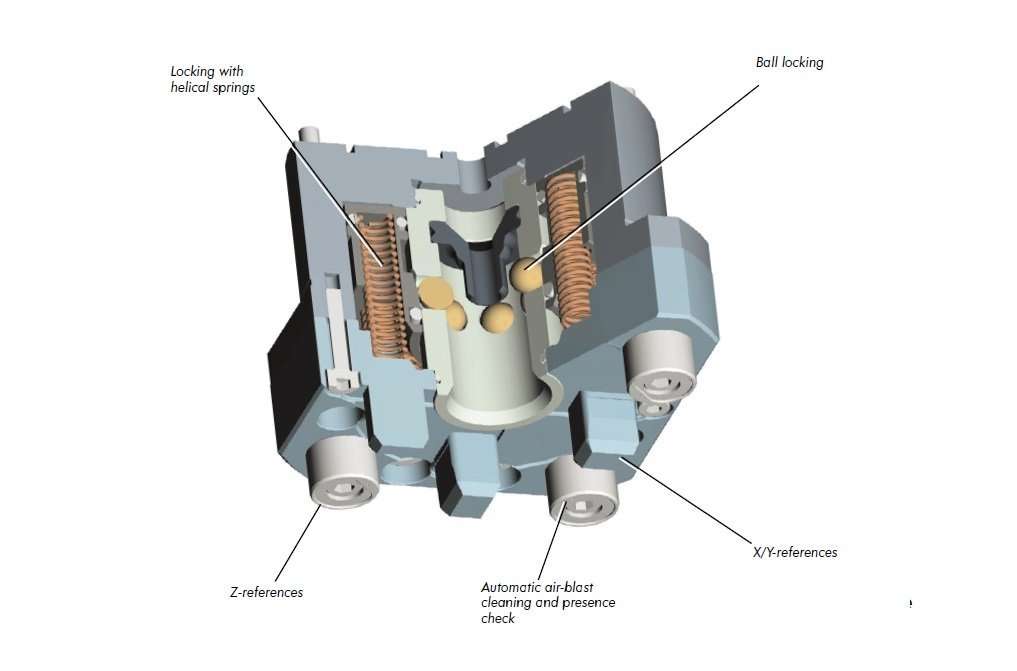

Kenmerken:
- Max. werkstukgewicht 50 kg
- Klemkracht 6 kN
- Repeteerbaarheid <0.002 mm
- Hoge nauwkeurigheid
- Hoge stabiliteit
- Max. productafmeting 150×150 mm

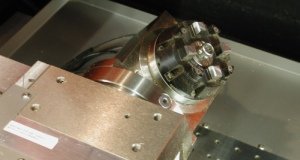

Chucks

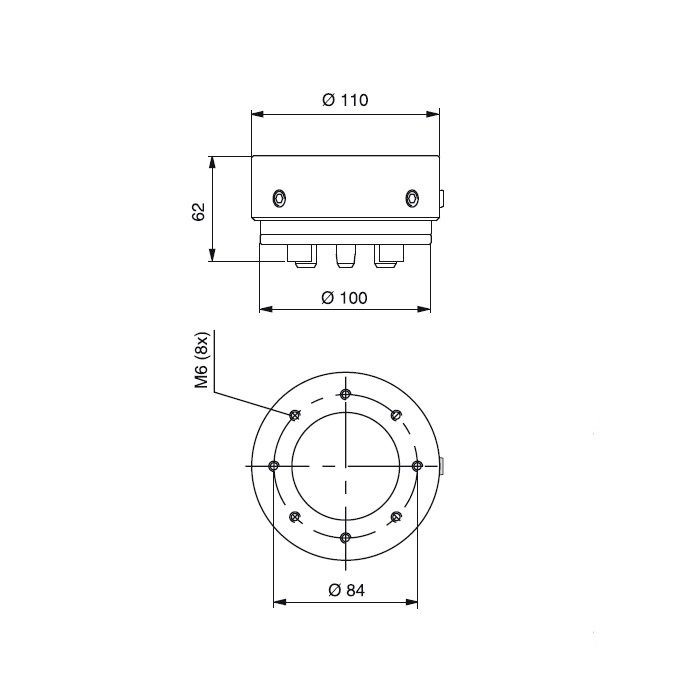

3R-600.20 MacroHP manuel chuck
- Required drawbar 3R-605.1 or 3R-605.4
- Fixed index positions 4×90°
- Tightening torque 4 Nm
- Carbide reference
- Weight 3.6 Kg

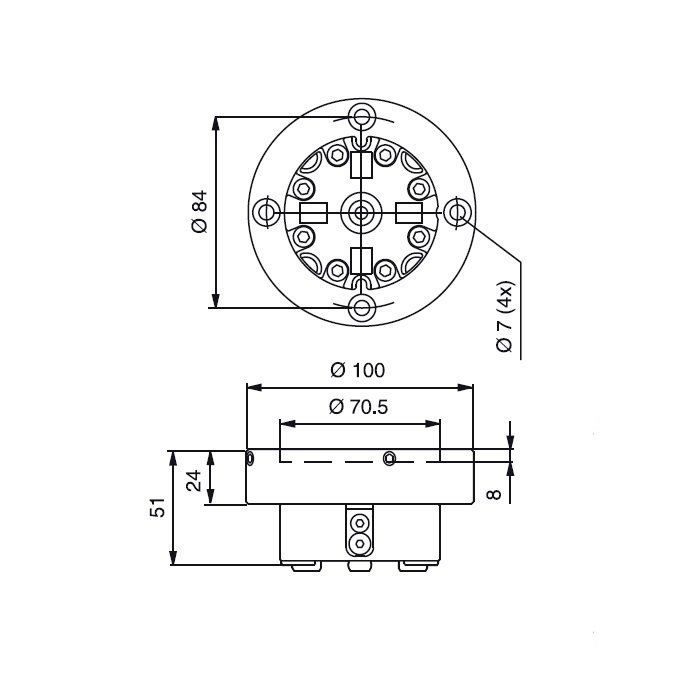

3R-600.22 MacroStd manuel lathe chuck
- With setting screws for centring
- Required drawbar 3R-605.2
- Tightening torque 6 Nm
- Fixed index positions 4×90°
- Weight 2.1 Kg

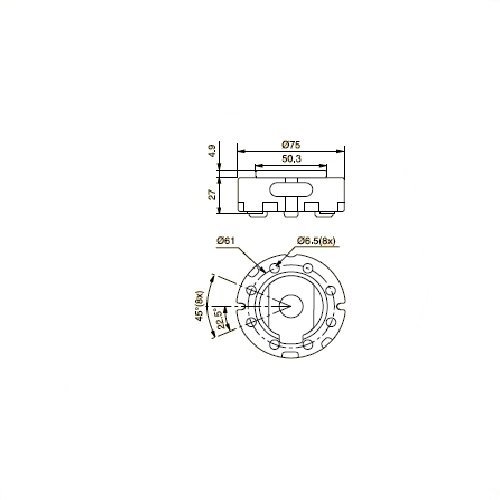

3R-600.23-S MacroStd manuel chuck
- Tightening torque 6 Nm
- Required drawbar 3R-605.2
- Fixed index positions 4×90°
- Flushing connection
- Weight 0.7 Kg

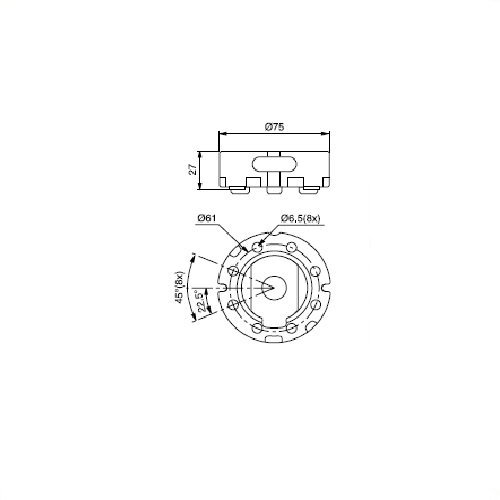

3R-600.24-S MacroStd manuel table chuck
- Manuel chuck for mounting on the table or spindle
- Required drawbar 3R-605.2
- Fixed index positions 4×90°
- Flushing connection
- Weight 0.7 kg

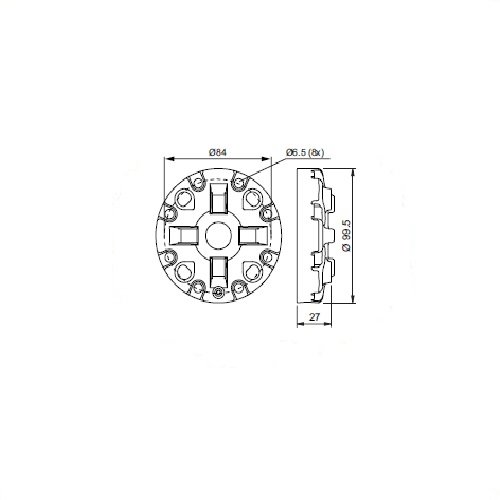

3R-600.28-S MacroStd manual chuck, low profile
- Required drawbar 3R-605.2RS
- Fixed index positions 4×90°
- Grinded front edge
- Rust resistant
- Weight 1 Kg

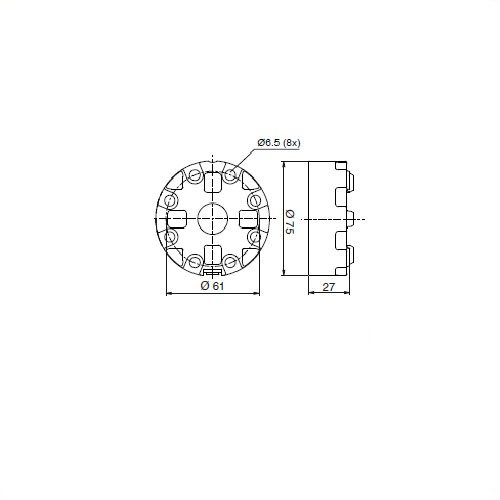

3R-600.24RS MacroStd manual chuck
- Required drawbar 3R-605.2RS
- Clamping force 6000N
- Fixed index positions 4×90°
- Rust resistant
- Weight 0.7 Kg

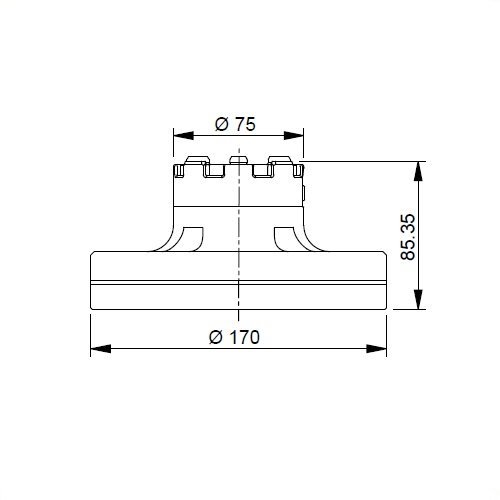

3R-600.24-V MacroStd manual VDP table chuck
- Required drawbar 3R-605.2
- Tightening torque 6 Nm
- Building-in height 85 mm
- Centre spacing 63 to 100 mm
- Weight 6 Kg

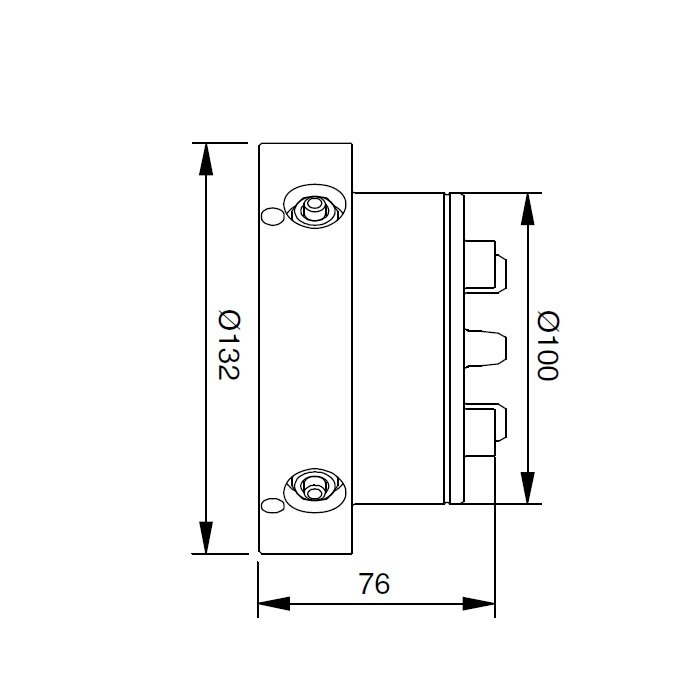

3R-600.1-30 MacroStd pneumatic chuck
- Permanent mounting machine spindle or the machine table
- Required drawbar 3R-605.1
- Fixed index positions 4×90°
- Turbo locking
- Weight 4 Kg

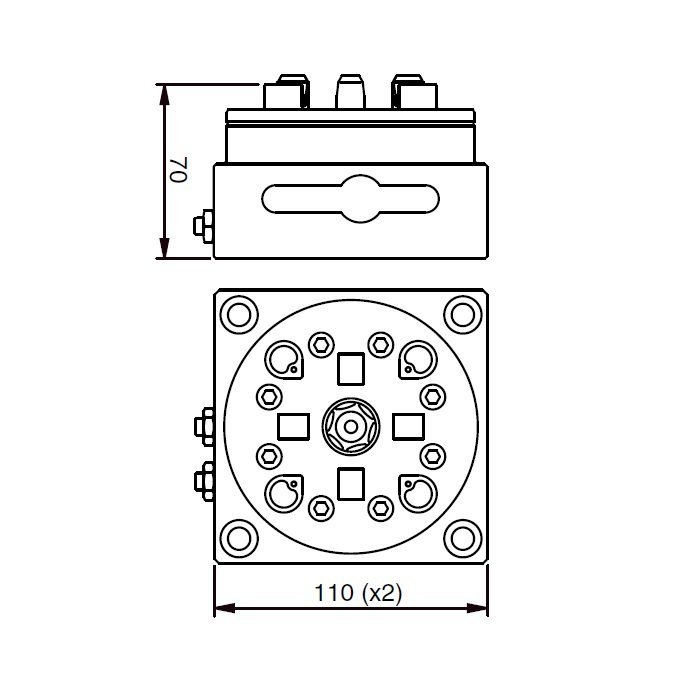

3R-600.10-3 MacroHP Pneumatic chuck
- Required drawbar 3R-605.1 or 3R-605.4
- Required air pressure 6±1 bar, turbo
- Fixed index positions 4×90°
- Air-blast cleaning of the Z-references
- Weight 4.4 Kg

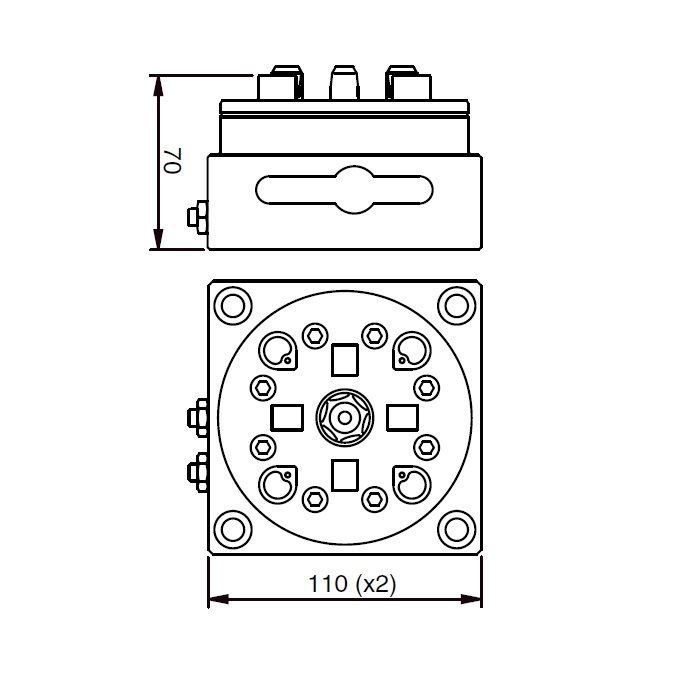

3R-600.10-30 MacroStd pneumatic table chuck
- Required drawbar 3R-605.1 or 3R-605.4
- Required air pressure 6±1 bar, turbo
- Fixed index positions 4×90°
- Air-blast cleaning of the Z-references
- Weight 4.4 Kg

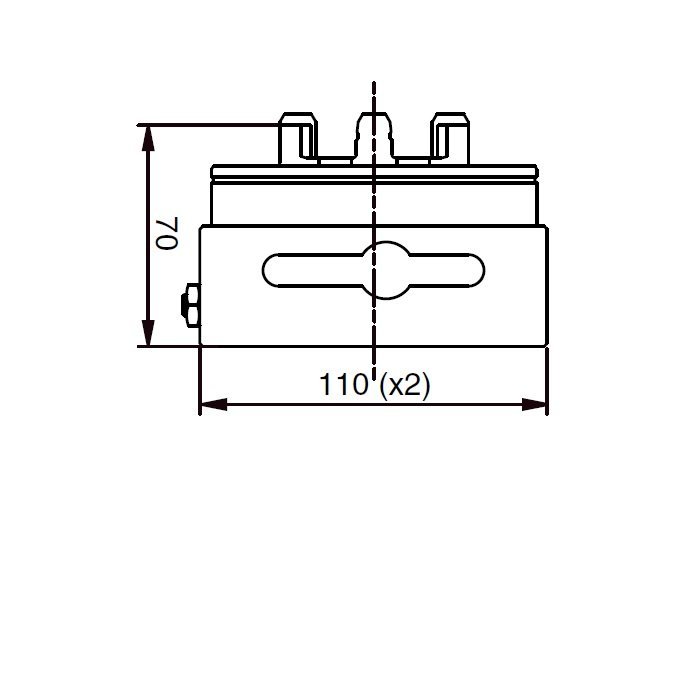

3R-600.10-31 MacroStd pneumatic chuck
- Automatic chuck with airgun connection
- Fixed index positions 4×90°
- Required drawbar 3R-605.1 or 3R-605.4
- Air-blast cleaning of the Z-references
- Weight 4.4 Kg

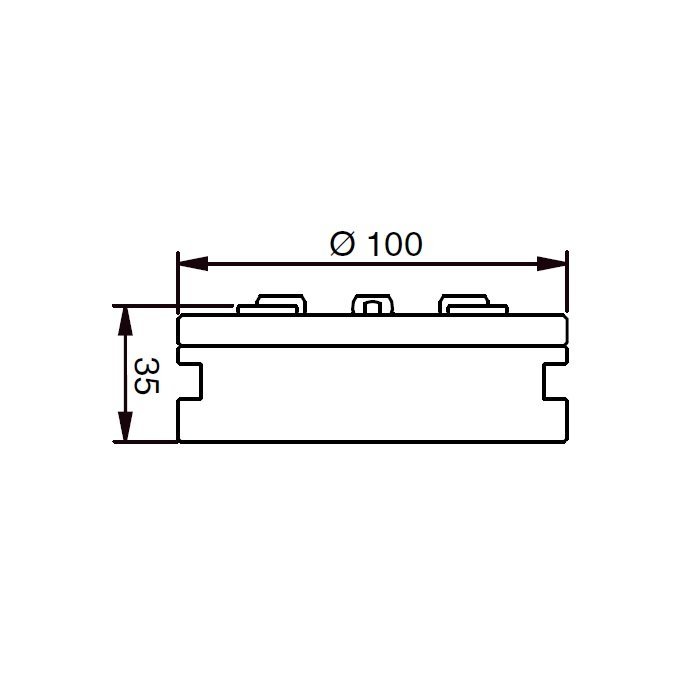

3R-600.14-30 MacroStd pneumatic chuck, low profile
- Pneumatic chuck for permanent mounting on the table
- Required drawbar 3|R-605.2
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Weight 0.8 Kg

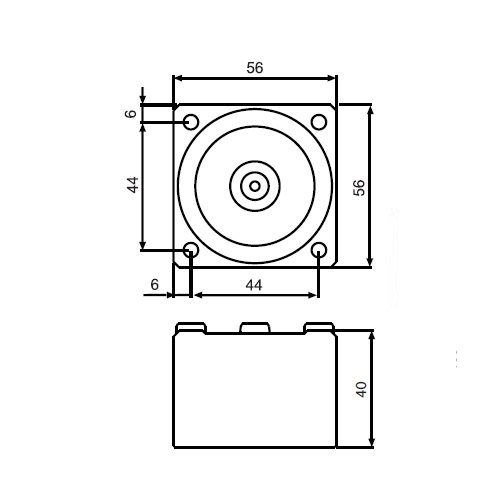

3R-600.15-3 MacroStd pneumatic chuck, RS
- Drawbar 3R-605.2RS included
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Rust resistant
- Weight 0.8 Kg

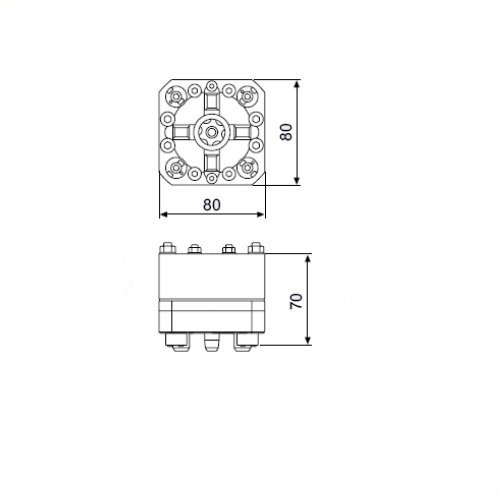

3R-600.86-1 MacroStd pneumatic, machine-adapted chuck
- Required drawbar 3R-605.1
- Required air pressure 6±1 bar
- Air-blast cleaning of the Z-references
- Flushing connection
- Weight 2.2 Kg

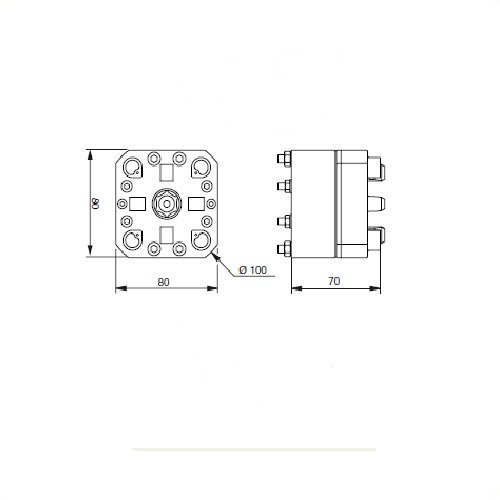

3R-600.86-3 MacroHP pneumatic chuck
- Required drawbar 3R-605.1
- Required air pressure 6±1 bar
- Air-blast cleaning of the Z-references
- Turbo locking
- Weight 4 Kg

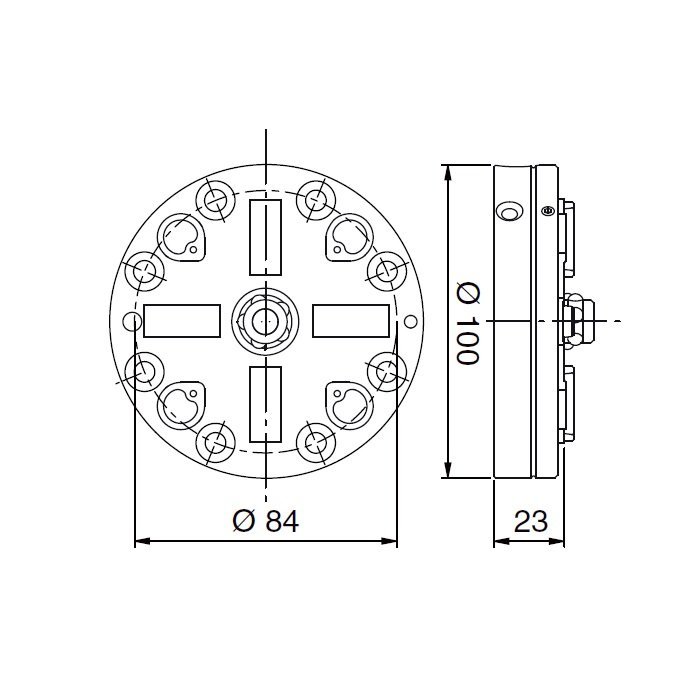

3R-602.81 MacroStd pneumatic table chuck, low profile
- Pneumatic chuck for mounting on the table
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Required drawbar 3R-605.1
- Weight 1 Kg
3R-600.84-30 MacroStd pneumatic, machine-adapted chuck
- Four M6 clearance holes Ø 45 mm
- Required drawbar 3R-605.1
- Required air pressure 6±1 bar
- Turbo locking
- Weight 2.7 kg

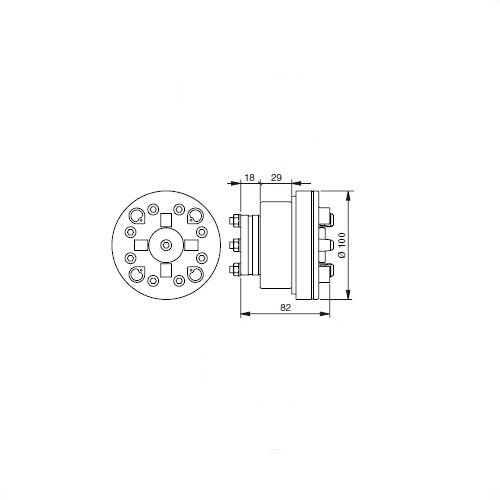

3R-600.84-31 MacroStd pneumatic

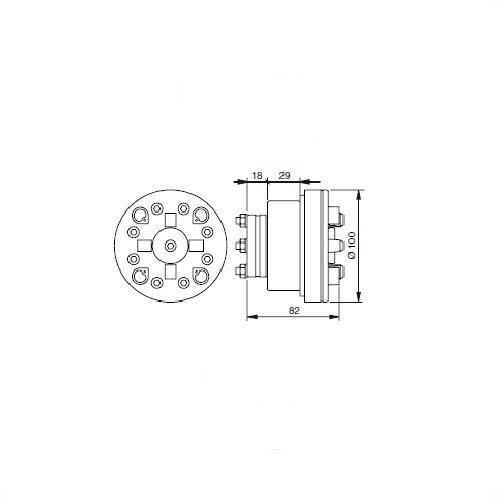

3R-600.84-3 MacroHP pneumatic chuck
- Required drawbar 3R-605.1
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Turbo locking
- Weight 4 Kg

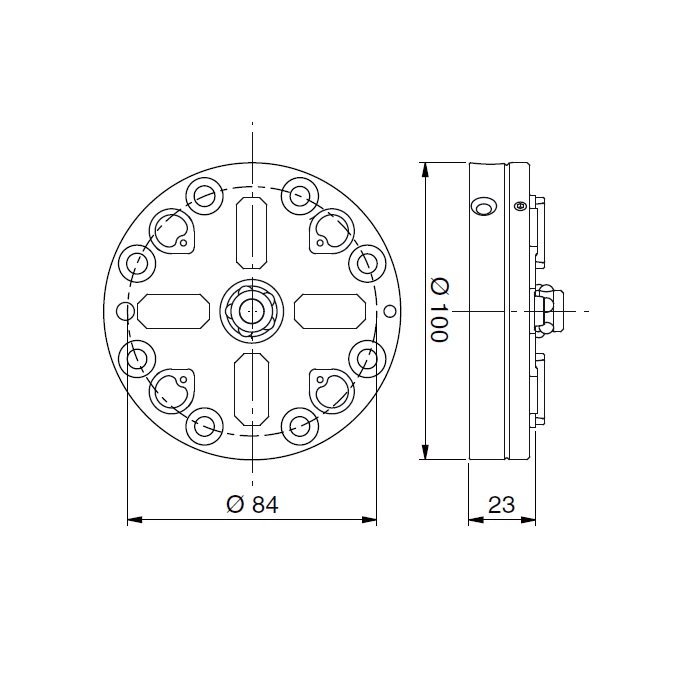

3R-602.81RS MacroStd pneumatic table chuck
- Pneumatic chuck for mounting on the table
- Required air pressure 6±1 bar with turbo locking
- Fixed index positions 4×90°
- Required drawbar 3R-605.10
- Weight 1 Kg

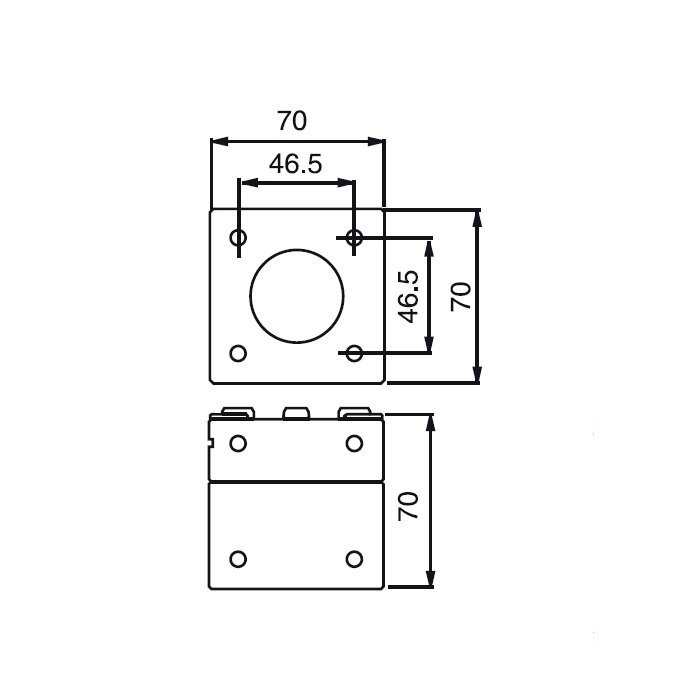

3R-610.21 MacoStd manuel table chuck
- Manuel Three ground faces for vertical/horizontal
- Required drawbar 3R-605.2
- Fixed index positions 4×90°
- Flushing duct
- Weight 2.2 Kg

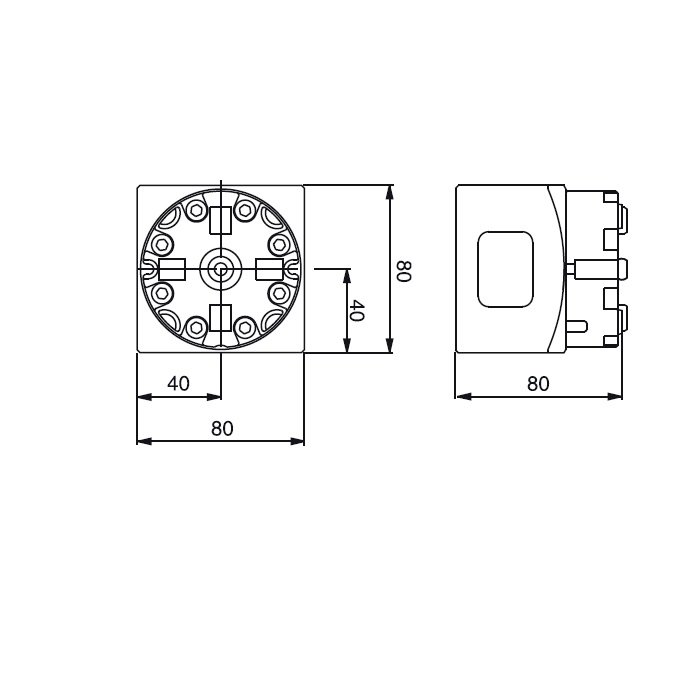

3R-610.21-S MacroStd pneumatic table chuck
- Pneumatic chuck with integral air unit horizontal/vertical
- Tightening torque 6 Nm
- Fixed index positions 4×90°
- Required drawbar 3R-605.2
- Weight 3.5 Kg

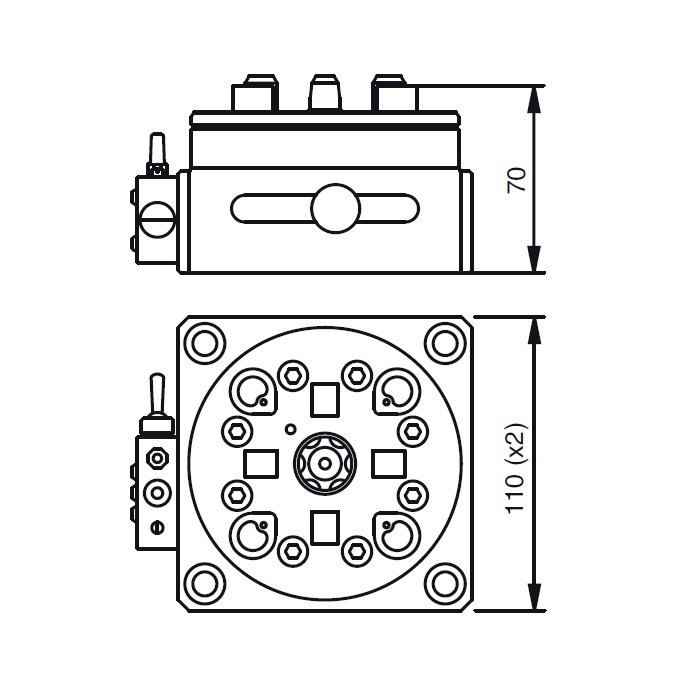

3R-610.46-30 MacroStd pneumatic table chuck
- Pneumatic chuck with integral air unit horizontal/vertical
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Required drawbar 3R-605.1 or 3R-605.4
- Weight 4.4 Kg

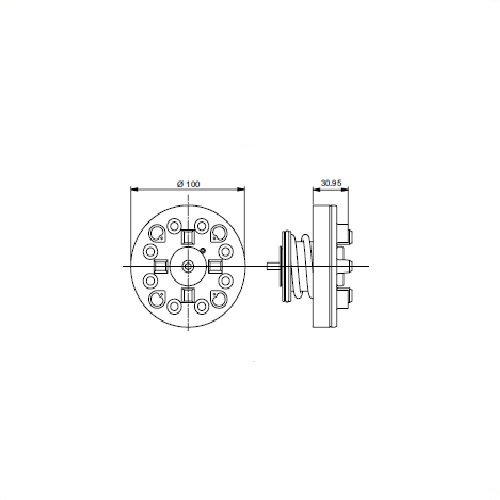

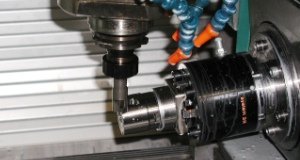

3R-SP24460 MacroStd pneumatic chuck
- Pneumatic chuck for build-in, in a fixture or B-axis
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Air-blast cleaning of Z-references
- Weight 1.8 Kg

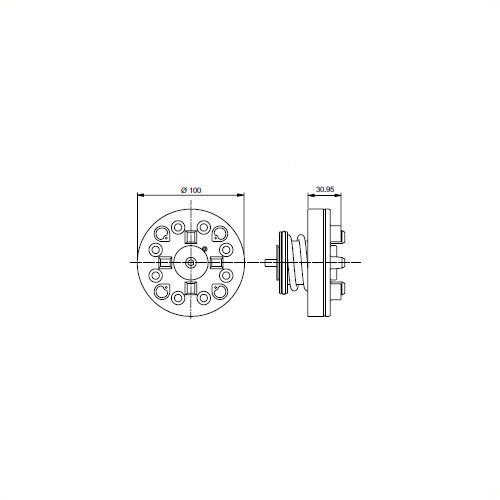

3R-SP26771-RS MacroHP pneumatic chuck
- Pneumatic chuck with integral air unit horizontal/vertical
- Tightening torque 6 Nm
- Fixed index positions 4×90°
- Required drawbar 3R-605.2
- Weight 3.5 Kg
3R-SP29828 MacroHP Pre-set chuck
- For pre-set station outside machine
- Embraces drawbar 3R-605.1 and 3R-605-2
- Manual lock
- Able to mix Macro and Macro Magnum pallets
- Weight … Kg
Pallets

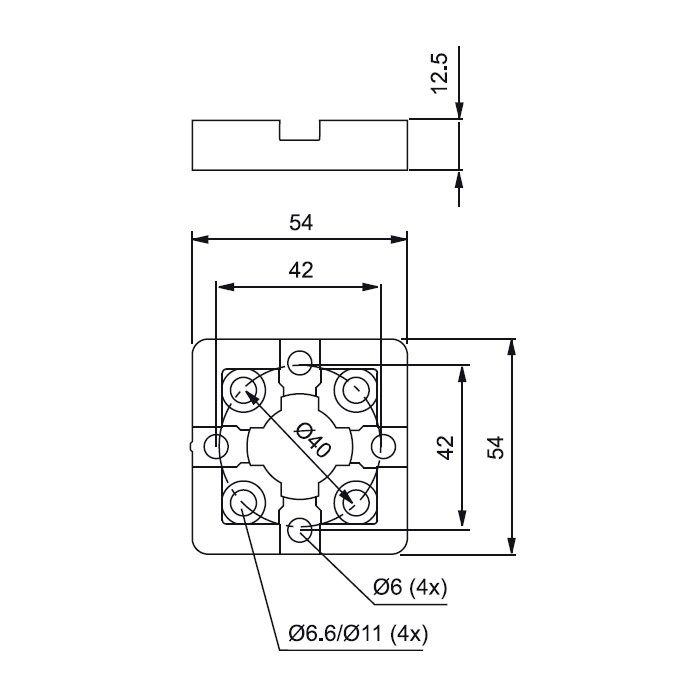

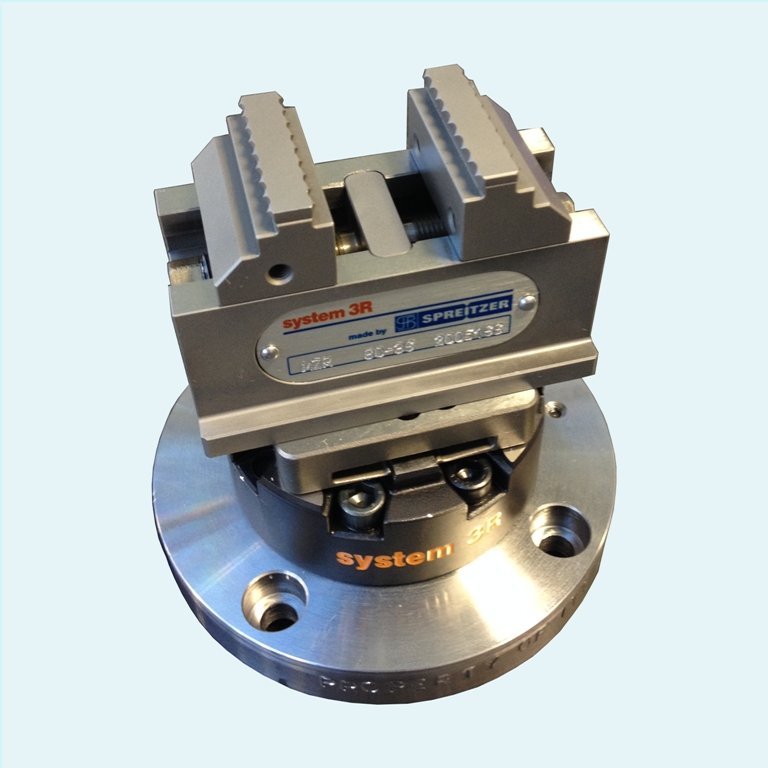

3R-651.7E-XS Macro pallet 54x54
- Hardened pallet for workpieces
- For automatic changing
- Flatness 0.002 mm
- Set off 8 piece
- Weight 0.2 kg

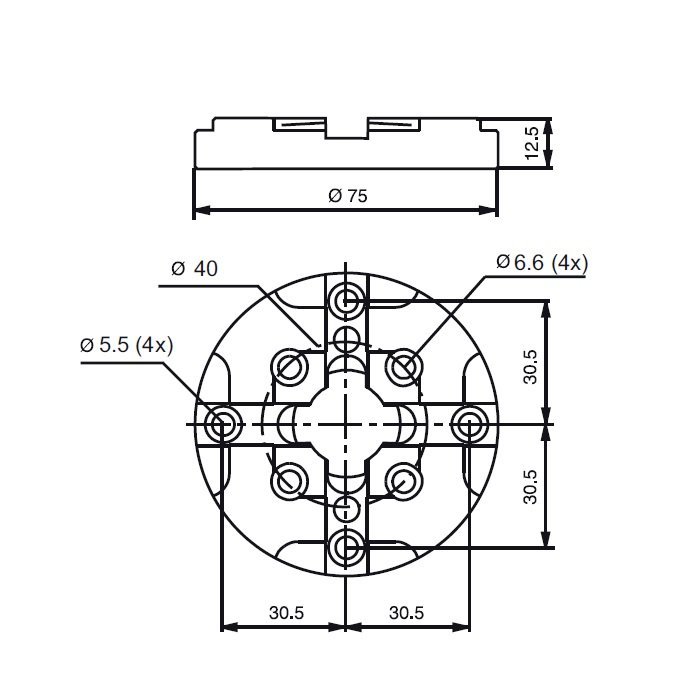

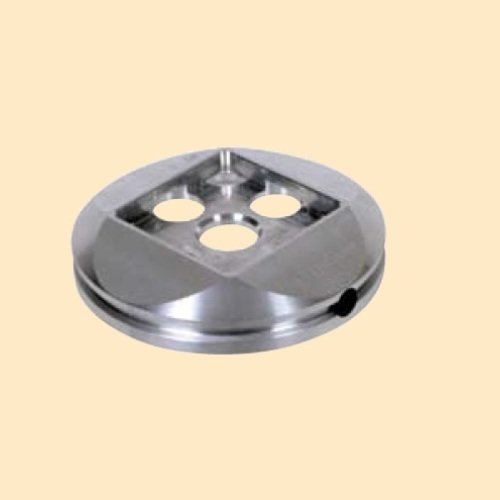

3R-651.75E-P Macro pallet round 75mm
- For automatic changing
- With holes for 4 fixing screws
- Rust-resistant
- Set off 8 pieces
- Weight 0.4 kg
3R-651.3 MacroHP pallet 52x52 mm
- 3Refix Ø10 mm
- Adapted for automatic changing
- Ready for code carrier
- Flushing duct
- Weight 0.5 kg

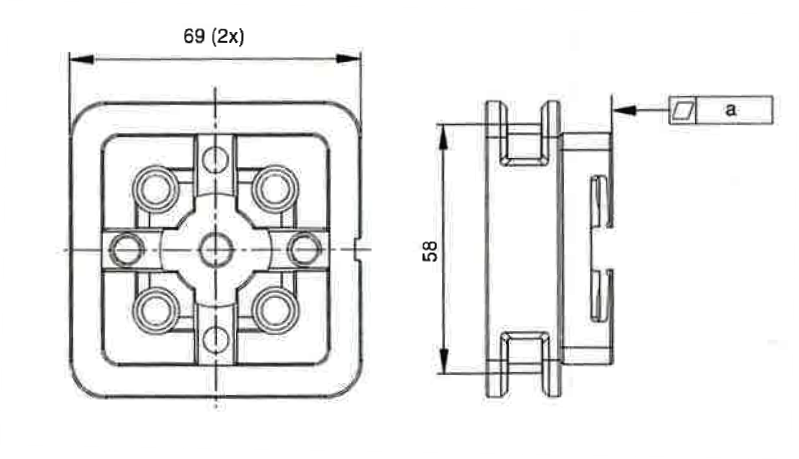

3R-651.70-P Macro pallet
- Unhardened pallet
- including reference element 3r-651.7-P
- Adapted for automatic changing
- Ready for code carrier
- Weight 1 kg

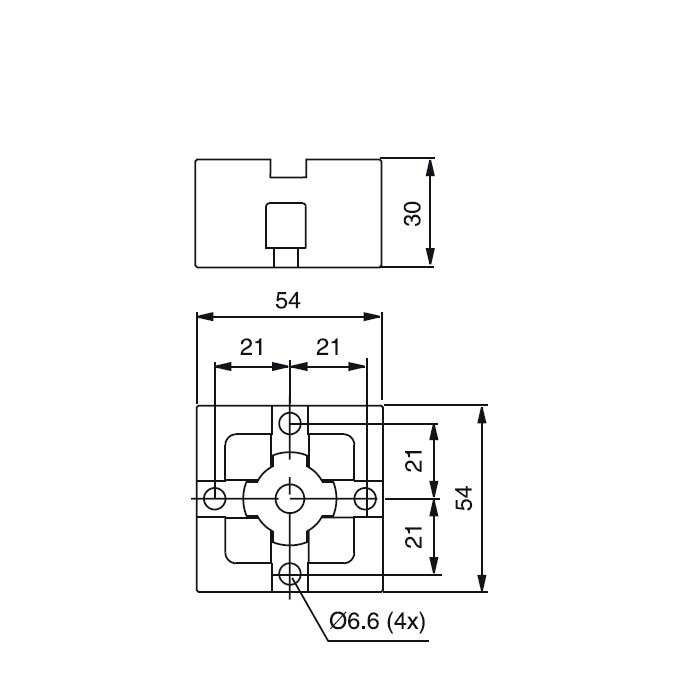

3R-651E-P Macro pallet 54x54 hardened
- For automatic changing
- With holes for 4 fixing screws
- Rust-resistant
- Set off 8 pieces
- Weight 0.4 kg

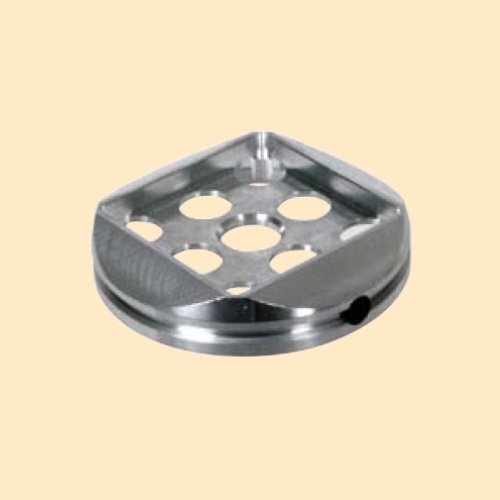

3R-601.116-75PA Pallet Ø116 mm
- Mounted on pallet 3r -651.75-P
- For automatic changing
- Ready for code carrier
- Set off 1 piece
- Weight 1.8 kg
3R-601.52 Macro pallet Ø116 mm RS
- For automatic changing
- With 3Refix Ø10 mm
- Rust-resistant
- Adapted for automatic change
- Weight 1.9 kg

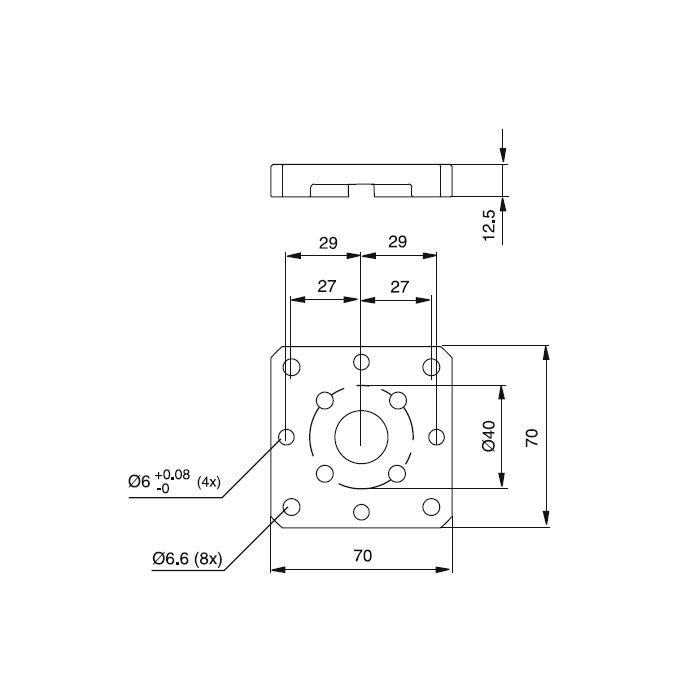

3R-601.7E-P Macro pallet 70x70 mm hardened
- Hardened cast-iron pallet
- For automatic changing
- Fixed index positions 4×90°
- Set off 5 pieces
- Weight 3 kg

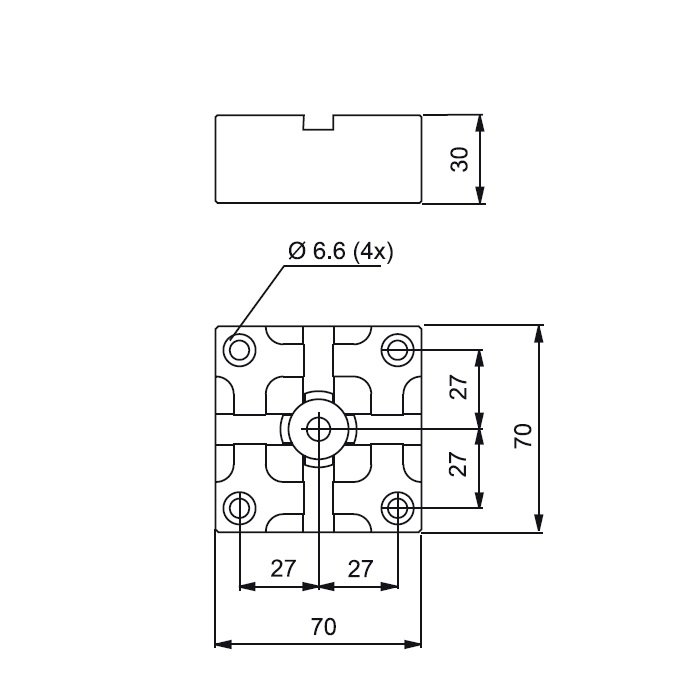

3R-601.1E-P MacroHP pallet 70x70 mm
- Adapted for automatic changing
- Ready for code carrier
- Rust-resistant
- Supplied in sets of 5
- Weight per set 3.2 kg
3R-659.16-P Macro collet holder ER-16
- For collets ER-16
- Workpiece size 0.5-10 mm
- Flushing duct
- Building-in height 62 mm
- Weight 0.8 kg
3R-659.20-P Macro collet holder ER-20
- For collets ER-20
- Workpiece size 1-13 mm
- Flushing duct
- Building-in height 69 mm
- Weight 1.2 kg
3R-659.16-P Macro collet holder ER-32
- For collets ER-32
- Workpiece size 2-20 mm
- Flushing duct
- Building-in height 94 mm
- Weight 1.2 kg

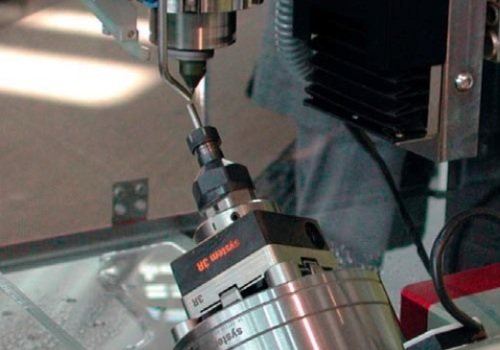

3R-466.10033 Macro-MacroJunior Manual chuck adapter
- Axial locking screw with channel for flushing through electrode
- Adapted for automatic changing
- Height 100 mm
- Fixed index positions 3×120°
- Weight 0.8 Kg

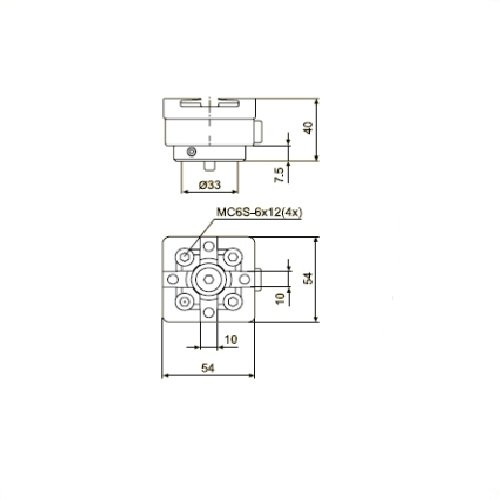

3R-466.4033-S Macro-Junior Manual chuck adapter
- Axial locking screw with channel for flushing through electrode
- Precision-cast Macro reference element
- Adapted for automatic changing
- Fixed index positions 3×120°
- Weight 1.1 Kg
3R-466.4033 Macro-MacroJunior Manual chuck adapter
- Axial locking screw with channel for flushing through electrode
- Precision-cast Macro reference element
- Adapted for automatic changing
- Fixed index positions 3×120°
- Weight 1.1 Kg

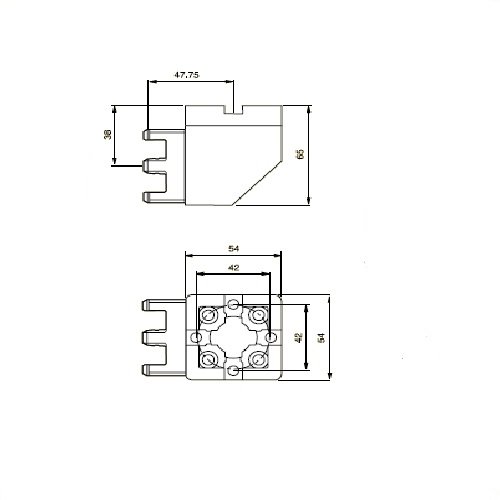

3R-652.9 Macro-Macro Manual chuck adapter 90°
- For horizontal mounting of Macro holders
- Supplied with drawbar for screw locking
- Rust-resistant
- Weight 2.4 Kg

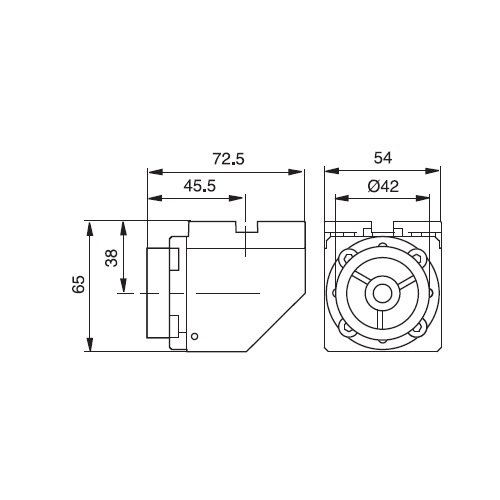

3R-406.9 Macro-MacroJunior Manual chuck adapter 90°
- Horizontal mounting of MacroJunior holders in Macro system
- Adapted for automatic changing
- Rust-resistant
- Fixed index positions 3×120°
- Weight 2.4 Kg
3R-603.9 Manual chuck adapter
- Horizontal mounting mini holders in Macro system
- Rust-resistant
- Flushing connection
- Weight 1.9 kg
3R-653-S Macro-Mini Manual chuck adapter
- For mounting Mini holders in the Macro system
- MacroStandard coupling
- Can be changed automatically
- Weight 1.3 Kg
3R-US611.4 Macro 3-Jaw chuck
- For 0-3 mm electrodes
- .
- .
- Weight 0.8 kg

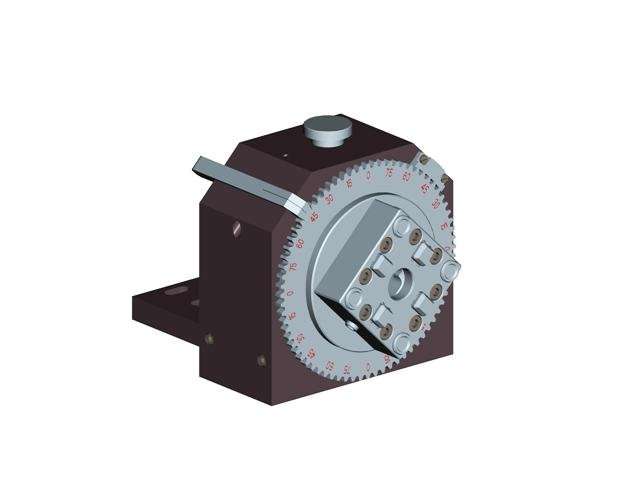

3R-US90-601 Gate chuck
- For collets ER-32
- Index positions at 0,30,45,60 and 90°
- Other angles are set with a sine rule
- Weight 1.1 kg
3R-656.21-SP03 measuring probe Renishaw Ø3mm
- Measuring probe Ø3mm
- For machines with measuring cycles
- Built-inn height 130mm
- Stiff probe
- Weight 0.8 Kg
3R-656.31-3P measuring probe Renishaw Ø3mm
- Measuring probe Renishaw probe Ø3mm
- For machines with measuring cycles
- Built-inn height 112mm
- Weight 0.6 Kg
3R-656.31-3P measuring probe Renishaw Ø5mm
- Measuring probe Renishaw probe Ø5mm
- For machines with measuring cycles
- Built-inn height 112mm
- .
- Weight 0.6 Kg
3R-US600.3 measuring probe Renishaw Ø5mm
- Measuring probe Renishaw probe Ø5mm
- For machines with measuring cycles
- Built-inn height 112mm
- Stiff probe
- Weight 0.6 Kg

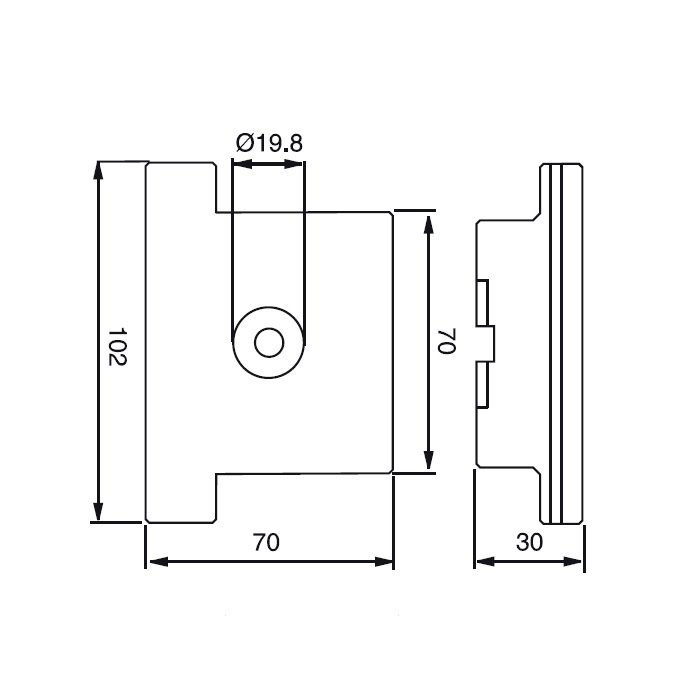

3R-606.1 Macro control ruler
- For setting angular positions
- For setting centering position
- Ground hole for centering
- Measuring length 100mm
- Weight 1.4 Kg

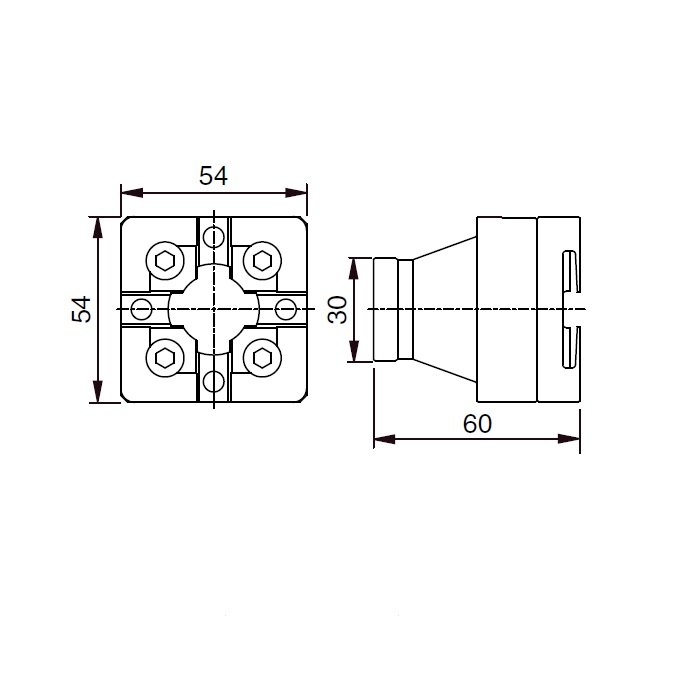

3R-656.1 Macro control ruler
- For setting angular positions
- For setting centering position
- Ground diameter for centering
- Measuring diameter 50mm
- Weight 0.8 Kg

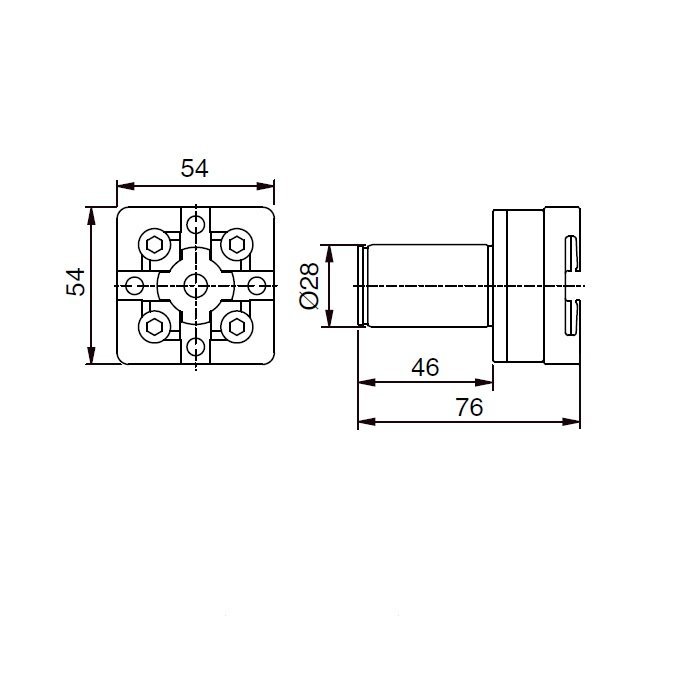

3R-656 Macro control rod
- For setting angular positions
- For setting centering position
- Ground diameter for centering
- Measuring length 38mm
- Weight 1 Kg

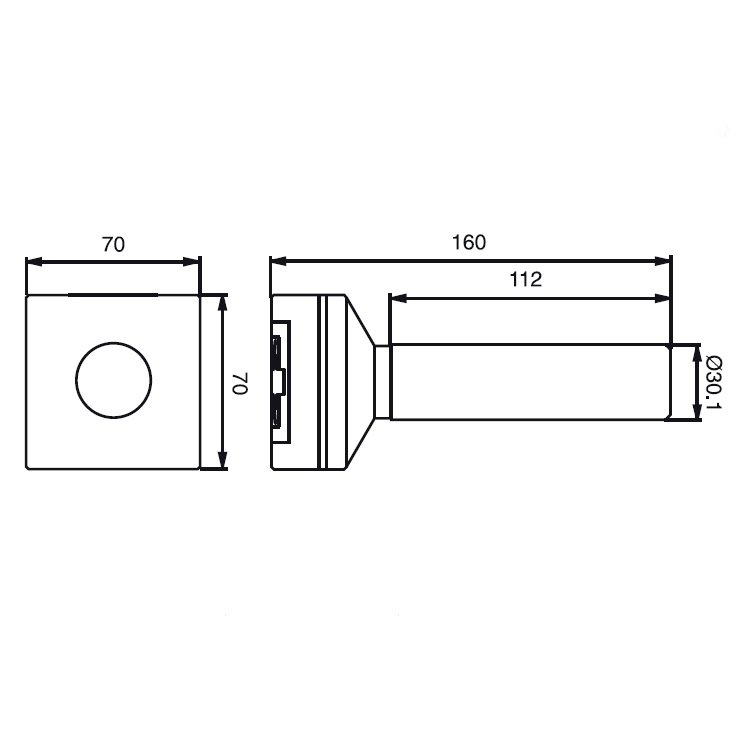

3R-606 Macro control rod
- For setting angular positions
- For setting centering position
- Ground hole for centering
- Measuring length 110mm
- Weight 2.3 Kg
3R-6.600-VHS Macro chuck, Rotating spindle
- Flushing via flushing connection
- For vertical and horizontal mounting die-sinking
- Speed range 60-1500 rev/min
- Max. electrode weight 5 kg
- Weight 9.5 kg
Spare parts
3R-SSP089, macro 3R-600.14-30
Spare part Kit for Macro chuck 3R-600.14-30.
3R-SSPxxx, macro HP revision set
Spare part kit will fit following chucks:
- 3R-600.1-3, 3R-600.1-30,
- 3R-600.10-3, 3R-600.10-30,
- 3R-610.46-3, 3R-610.46-30,
- 3R-600.84-3, 3R-600.84-30,
- 3R-600.86-3, 3R-600.86-30,
- 3R-600.86-30PF,
- 3R-SP24460,
- 3R-SP26771,
- 3R-SP26771-RS
- 3R-SP25442, 3R-SP26756
