System 3R gebruikte en demo robots voor frezen, slijpen, meten en EDM.
De robots zijn in zeer goede staat en volledig nagekeken. De robots staan in bedrijf en kunnen live worden bekeken. De robots kunnen eventueel met 3 maanden garantie worden aangeboden

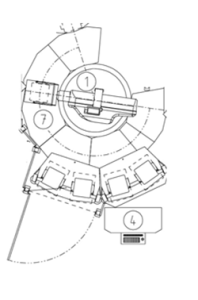

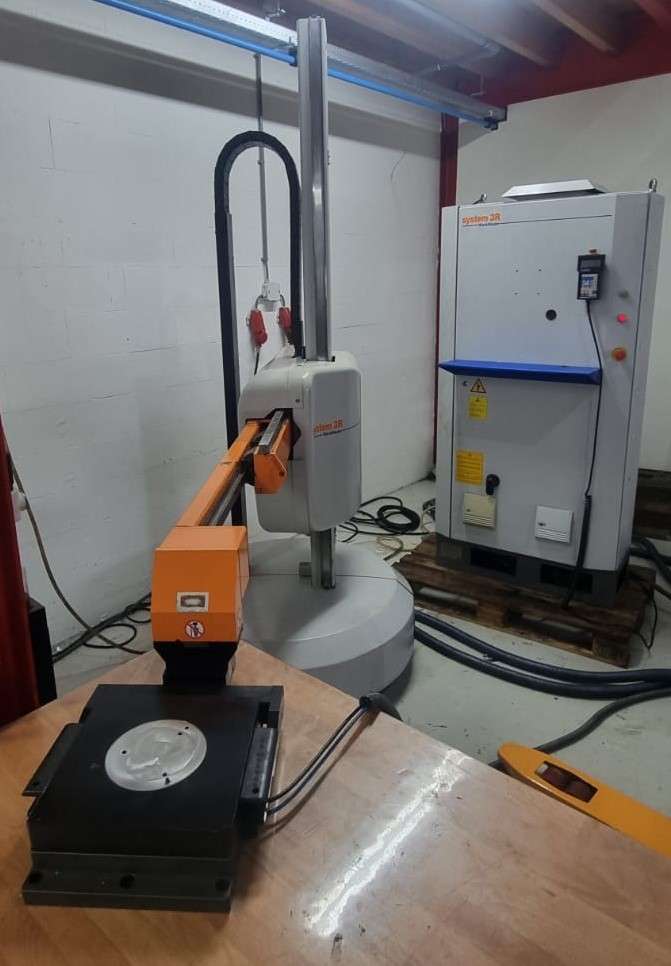

WorkMasTer (#00150):
| Type: | 1250/150 |
| Transfer weight: | 150Kg |
| Year | 2007 |
| Gripper | Dynafix |
| Tooling | Dynafix 280x280mm |
| 2x Standard magazines | total 20 positions |
| 2x half rack magazines | total 8 positions |
| Loading station: | Yes |
| Fencing: | Yes |
| Optional: | |
| 3R-770-1 | 1x Dynafix chuck USED |
| 3R-771.2 | 15x Dynafix pallets USED |
| Dual machine operation | loading 2 machines |
| Warranty OPTIONAL | 3 month |
WorkMasTer (#00200):
| Type: | 1250/150 |
| Transfer weight: | 150Kg |
| Year | 2008 |
| Grippers | Delphin and Macro-magnum |
| Tooling + dimensions [mm] | Delphin 450×450 / Magnum 180×180 |
| 2x Standard magazines Delphin | Total 8 positions |
| 1x carrousel Macro-magnum | Total 45 positions |
| Loading station: | Yes |
| Fencing: | Yes |
| Optional: | |
| Delphin chuck (used) | 1x Delphin with 2 extra channels |
| Delphin-Magnum pallet adapter (used) | 1x adpater |
| Cellmanager | On request |
| Dual machine operation | Loading 2 machines |
| Warranty OPTIONAL | 3 month |
Workpartner (#00300):
| Type: | WPT 1+ |
| Transfer weight: | 80Kg |
| Year | 2021 |
| Grippers | GPS240 and Macro |
| Tooling + dimensions | GPS240 240×240 / Macro 80x80mm |
| 1x Heavy magazine GPS240 | Total 8 or 10 positions |
| 1x Light magazine Macro HP | Total 80 positions |
| Loading station: | Yes |
| Fencing: | Yes |
| Optional: | |
| GPS240 chuck | 1x GPS240 with 2 extra channels |
| GPS240-Macro pallet adapter | 1x adapter |
| Cellmanager | On request |
| Warranty OPTIONAL | 3 month |
Bandolin cleaning machine (#00400):
| Type: | 530-2, compact CNp cleaning module |
| Year | 2021 |
| Basket dimension | 455*245*50mm |
| Tank dimension | 510*300*280mm |
| External dimension | 1550*800*985mm |
| Ultrasonic power | 300-1200 Watt |
| Heating element | 3000 Watt |
| Power | 15,7 A |
| Min. chamber pressure | -0,8 bar |
| Chamber 1 an 2 | Ultrasoon and CNp |
| Highlights | |
| Easy operating system | |
| Ideal for testing and small series | |
| Machine is on rollers | |
| The machine hat a new heating element |
Mikron milling machine (#00500):
| Type: | VCE600Pro |
| Year: | 2008 |
| Travel (X-, Y- and Z-axes): | 600*500*540mm |
| Control: | Heidenhain iTNC530 |
| Spindel: | 10.000 min.-1 / ISO40 |
| Tool changer: | 24 positions |
| Power: | 16 kW / 32Amp. |
| Spindel hours: | +/- 9900 |
| Weight: | 4800Kg |
| Highlights | |
| Probe M&H | |
| Tool probe TS27 | |
| coolant ring spindle | |
| Tooling several toolholders included | |
| The machine is still working well | and can be tested on sight |
