GPS70-120, fix reference system for small machines
- IF YOU WANT TO COMPETE in the global manufacturing industry, you need to study every aspect of efficiency.
- The important thing is to get the maximum number of machine hours out of every machine. The machines generate revenue when they are producing – and only then!
- A reference system which reduces setup times to a few minutes – One Minute Set-up.
- Macro with references of cemented carbide which give unsurpassed wear resistance and life.
- A system that minimises the throughput time, and which, thanks to its accuracy, practically eliminates rejects.
- A system that increases flexibility and profitability.
- A system that increases competitiveness and ensures the success of its users.
Features
- Max. work piece weight 20Kg
- Clamping force 3.000N
- Repeatability <0.002mm
- High accuracy
- High stability
- Maximum product size 80×80 / 150×150
Chucks

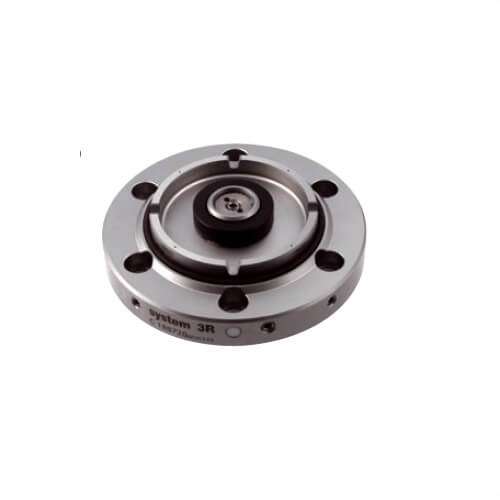

C188720 GPS 70 Clamping unit, pneumatic
- Dimension: Ø 99×22 mm
- 6x M6 screws (on flange C188730)
- Clamping/releasing: pneumatic
- Air pressure: 6 bar
- Z-support cleaning: yes

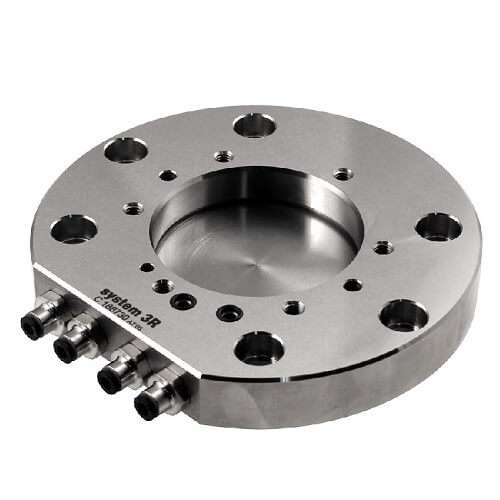

C188730 Flange for GPS 70 clamping unit
- Dimension: Ø 140×20 mm
- Mounting: 6x M8
- A = releasing/clamping
- B = Z-support cleaning
- C = drain or over-pressure

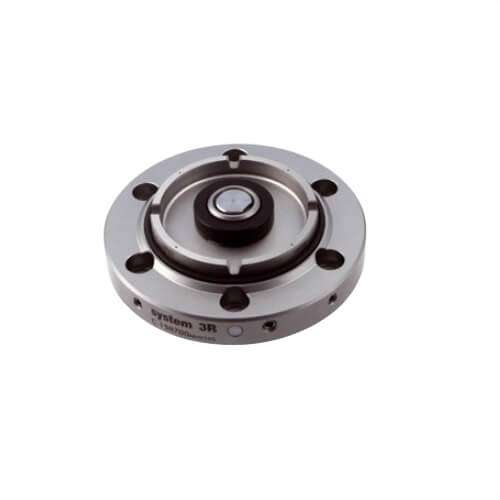

C198700 GPS70 Pneumatic chuck automation
- Dimensions: Ø99 x 22 mm
- Mounting: 6x M6 screws (fits on flange C188730)
- Releasing: pneumatic, 6 bar
- Required air pressure: 6 bar
- Z-supports cleaning: yes

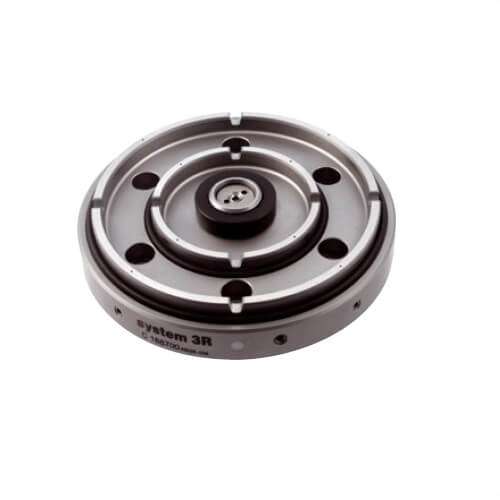

C188700 GPS 120 Clamping unit, pneumatic
- Dimension: Ø 118×22 mm
- 6x M6 screws (on flange C188710)
- Clamping/releasing: pneumatic
- Air pressure: 6 bar
- Z-support cleaning: yes

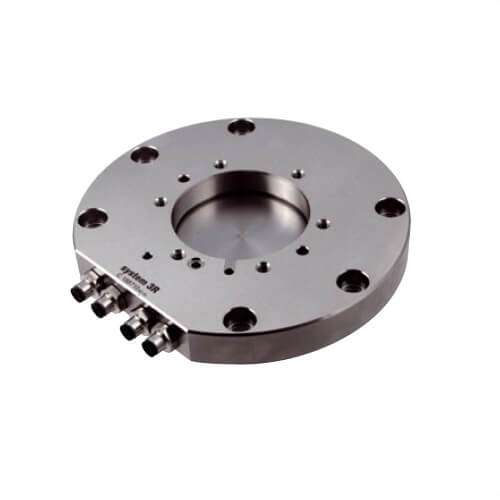

C188710 Flange for GPS 120 clamping unit
- Dimension: Ø 160×20 mm
- Mounting: 6x M8
- A= releasing/clamping
- B= Z-support cleaning
- C= drain or over-pressure

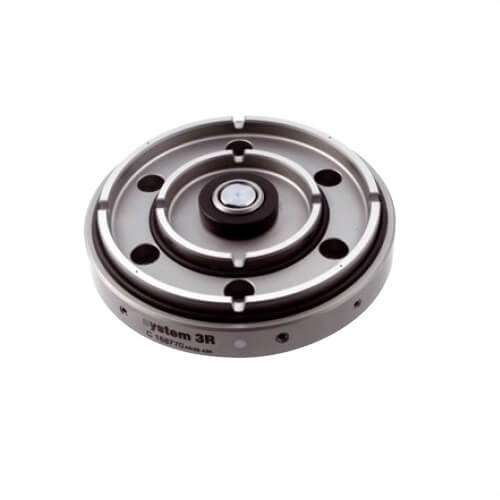

C188770 GPS120 Pneumatic chuck automation
- Dimensions: Ø118 x 22 mm
- Mounting: 6x M6 screws (on flange C188710)
- Releasing: pneumatic , 6 bar
- Z-supports cleaning: yes, only GPS 120
- Weight 1 Kg

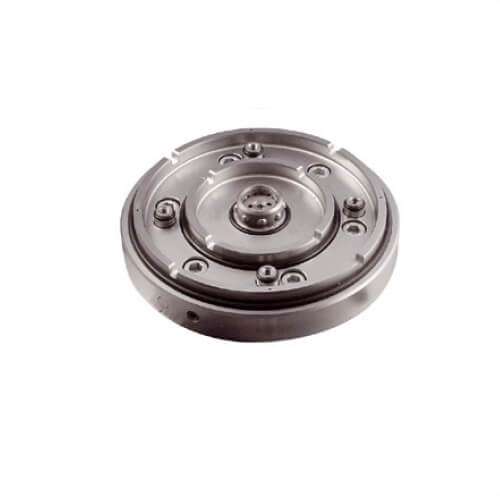

C190120 GPS120 Pneumatic chuck automation
- Material: stainless steel, hardened
- Dimensions: Ø118 x 22 mm
- Mounting: 6x M6 screws (on flange C190125)
- Required air pressure: 6 bar
- Z-supports cleaning: yes

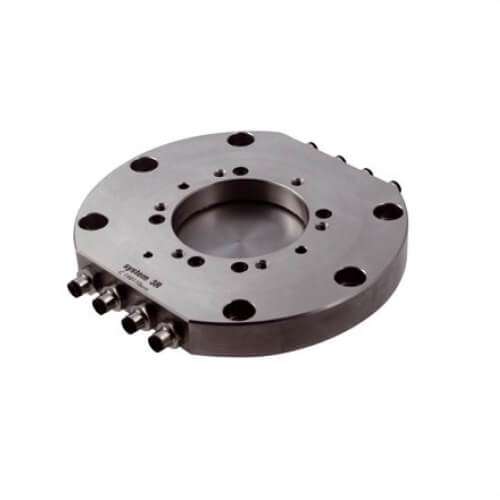

C190125 Flange for GPS120 chuck C190120
- Material: stainless steel, hardened
- Dimensions: Ø160 x 20 mm
- Mounting: 6x M8
- Connections: 5x
- Weight …Kg

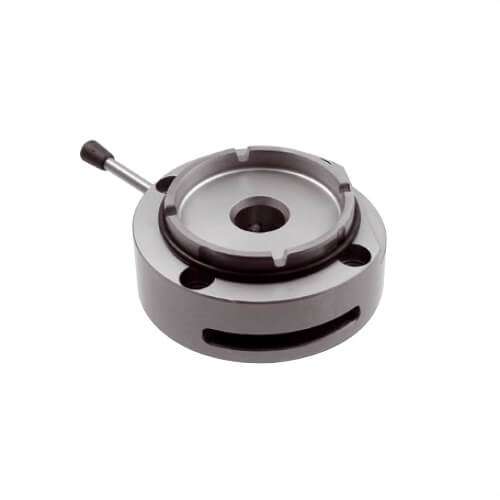

C190000 GPS70 Chuck, manual
- Dimension: 85×35 mm
- Mounting: 4x M6 screws
- Required clamping spigot: S500062
- Clamping force 3.000N.
- Weight …Kg

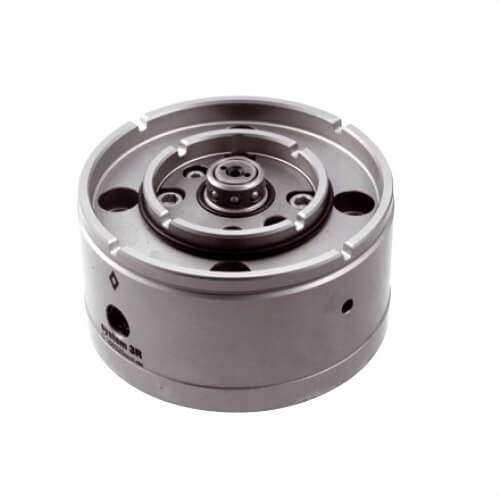

C188320 GPS 120 Chuck, manual
- Demension: Ø 108×57.4 mm
- Mounting: 4x M8 screws
- Clamping/releasing: manual
- Flushing: lateral inlet
- Weight …Kg

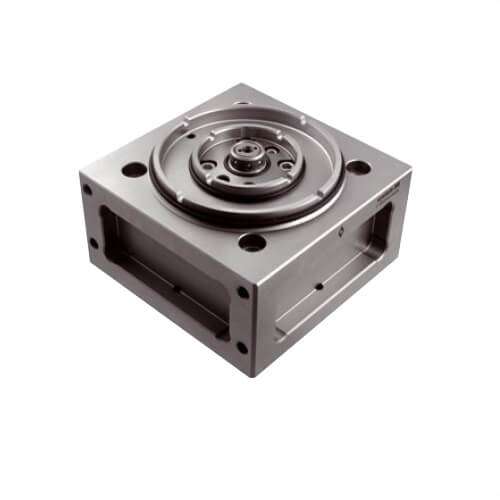

C531000 GPS120 Chuck, manual
- Dimension: 136x136x80 mm
- Mounting: 4x M8 screws
- Clamping/releasing: manual
- Mounting from bottum on GPS240
- Weight …Kg
Pallets

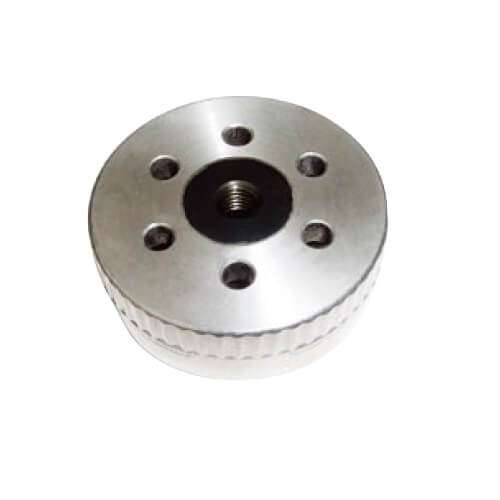

C695050 GPS70 Alu pallet, manual use

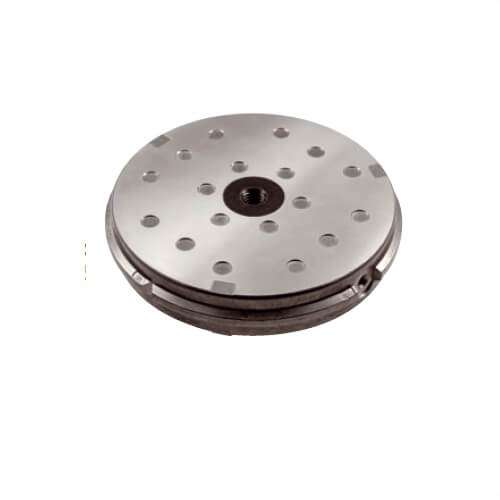

C695140 GPS120 Alu pallet, automation
- Workpiece or electrode holder
- Prepared for automation
- With gripper contour
- Pallet without code carrier
- Weight … Kg

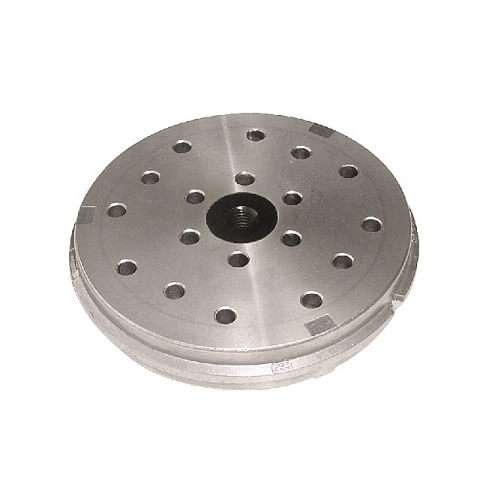

C695100 GPS120 Alu pallet, manual use
- Not prepared for automation
- Workpiece or electrode holder
- Weight …Kg

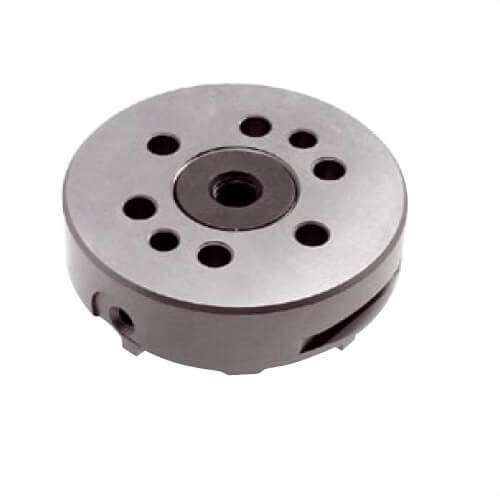

C695265 GPS70 Steel pallet, automation
- Workpiece or electrode holder
- Prepared for automation
- With gripper contour
- Pallet without code carrier
- Weight ….Kg

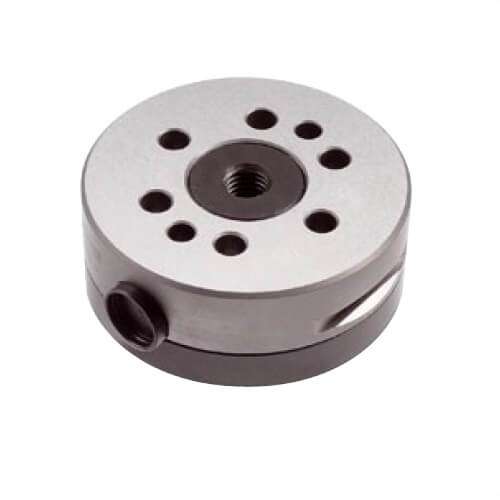

C695270 GPS70 Steel pallet, automation
- Workpiece and device holder
- Prepared for automation with ring
- Fixture and gripper contour
- With code carrier
- Weight …Kg

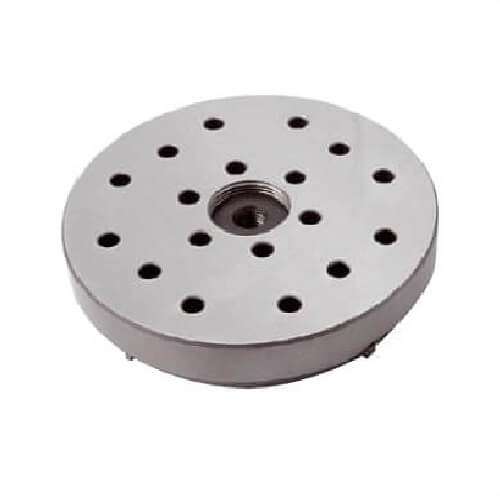

C695365 GPS120 Steel pallet, automation
- Workpiece or electrode holder
- Prepared for automation
- With gripper contour
- Pallet without code carrier.
- Weight …Kg

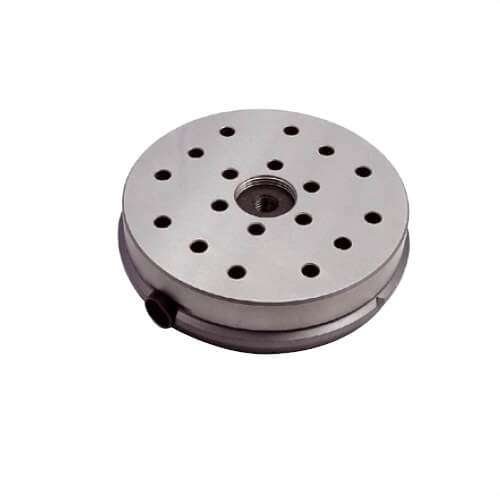

C695370 GPS120 Steel pallet, automation
- Workpiece and device holder
- Prepared for automation with ring
- Fixture and gripper contour
- With code carrier
- Weight ….Kg

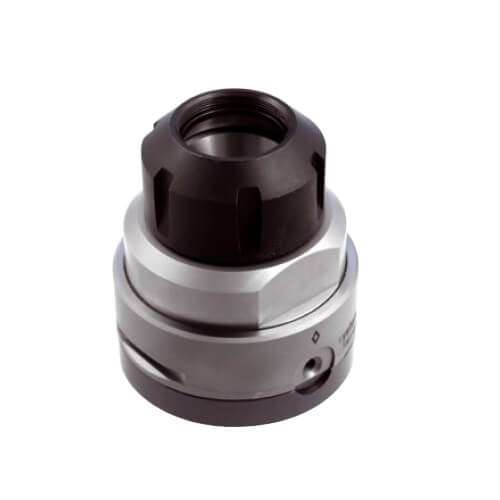

C735110 GPS70 collet holder ER32
- Insertion of collet chucks ø 2 – 20 mm
- Material: stainless steel, hardened
- Dimension: ø 69,7 x 59 mm
- Collet chuck key: included in delivery
- Weight 0,9 kg
C695370 GPS120 Steel pallet, automation
- Workpiece and device holder
- Prepared for automation with ring
- Fixture and gripper contour
- With code carrier
- Weight ….Kg
C735110 GPS70 collet holder ER32
- Insertion of collet chucks ø 2 – 20 mm
- Material: stainless steel, hardened
- Dimension: ø 69,7 x 59 mm
- Collet chuck key: included in delivery
- Weight 0,9 kg

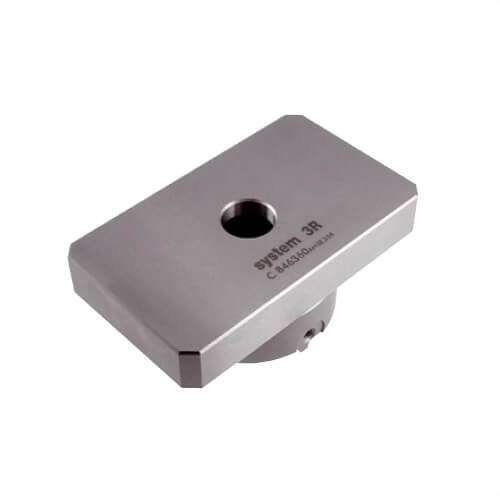

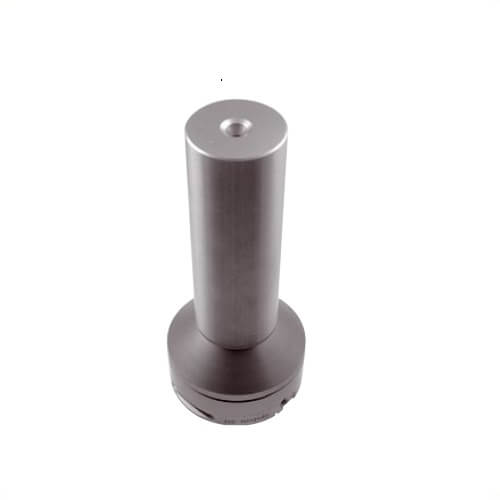

C846360 GPS70-120 Reference pallet
- Workpiece and device holder
- Prepared for automation with ring
- Fixture and gripper contour
- With code carrier
- Weight ….Kg

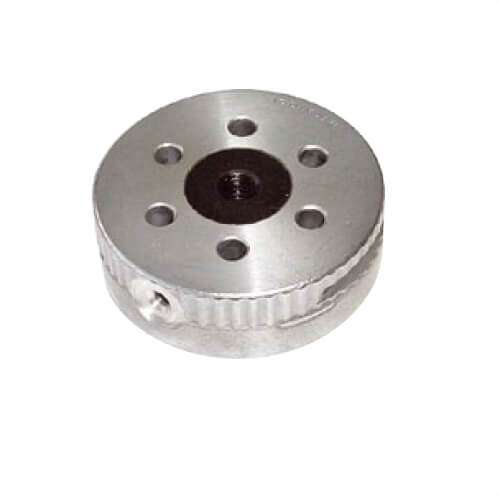

C695040 GPS70 Alu pallet, automation
- Workpiece or electrode holder
- Prepared for automation
- With gripper contour
- Pallet without code carrier
- Weight …. Kg
