Macro WEDM, het breedste programma op de markt
- Door consistent gebruik van de 3R technologie kunt u accessoires overbrengen tussen verschillende machines.
- U kunt dit doen zonder verlies van nauwkeurigheid, omdat de repeteerbaarheid van de accessoire-verbinding binnen 0,002 mm blijft.
- Wanneer u een Macro opname als basiselement neemt op uw machine, kunt u al uw machines met elkaar verbinden om één enkel systeem te vormen.
- Verplaats het werkstuk van draadvonkmachine via zinkvonker naar slijpmachine, zonder aansluitend uitlijnen – snel en exact.
- En wanneer u een automatische Macro opname kiest, kunt u 24 uur per dag onbemand produceren als u dat wilt.
Kenmerken
- Max. werkstukgewicht 15 kg
- Klemkracht 7 kN
- Repeteerbaarheid <0.002 mm
- Hoge nauwkeurigheid
- Hoge stabiliteit
- Nieuw systeem voor een hogere spoeldruk
Chucks
3R-602.26 Manual table chuck
- Fixed index positions 4×90º
- Clamping force 6000N
- Recommended drawbar 3R-605.5RS
- Weight 1.1 Kg
3R-602.27 Manual table chuck
- Fixed index positions 4×90º
- Clamping force 6000N
- Recommended drawbar 3R-605.27RS
- Weight 1.1 Kg
3R-602.10-1 Automatic pneumatic table chuck
- Required air pressure 6±1 bar
- Clamping force 7000N
- Recommended drawbar 3R-605.10
- Air-blast cleaning of the Z-references
- Weight 1.1 Kg
3R-600.24-4RS Manual table chuck
- Fixed index positions 4×90º
- Clamping force 6000N
- Recommended drawbar 3R-605.2RS
- Weight 1 Kg
3R-600.24RS Manual table chuck
- Fixed index positions 4×90º
- Clamping force 6000N
- Recommended drawbar 3R-605.27RS
- Weight 1.1 Kg
3R-602.4.1 Automatic pneumatic table chuck
- Required air pressure 6±1 bar
- Clamping force 4500N
- Recommended drawbar 3R-605.1RS
- Air-blast cleaning of the Z-references
- Weight 3.7 Kg

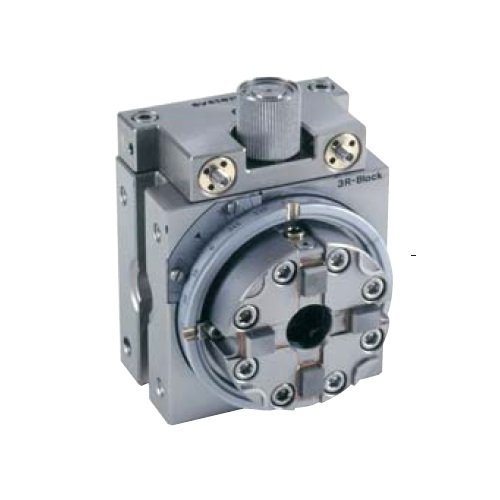

3R-217-1 Macro 3R-block manual
- Clamping force 6 kN
- Fixed index positions 24×15°
- Required drawbar 3R-605.2RS
- Tightening torque 6 Nm
- Vernier scale
- Weight 5.4 Kg
Pallets
3R-262HP Leveling adapter Macro
- Adjustable in three axes
- Adapted for automatic changing
- Ready for code carrier
- Recommended maximum load 15 kg
- Weight 2.4 Kg
3R-266.4 Fixed adapter Macro
- Adapted for automatic changing
- Supplied without drawbar
- Ready for code carrier
- Recommended maximum load 15 Kg
- Weight 1.4 Kg
3R-622.6 Manual macro chuckling
- Chuck adapter for mounting 90° Macro holders
- Supplied with drawbar 3R-605.5RS
- Fixed index positions 4×90º
- Ready for code carrier holder 3R-U30638
- Weight 2.3 Kg
3R-206.10 Master pallet
- Master for horizontal Macro chucks
- One long side ground to the Macro references
- Supplied with engraved dimensions
- Supplied with drawbar 3R-605.10
3R-606.2 Master pallet
- Master for vertical Macro chucks
- Cylinder ground to the Macro references
- Supplied with engraved dimensions
- Supplied without drawbar
Vices

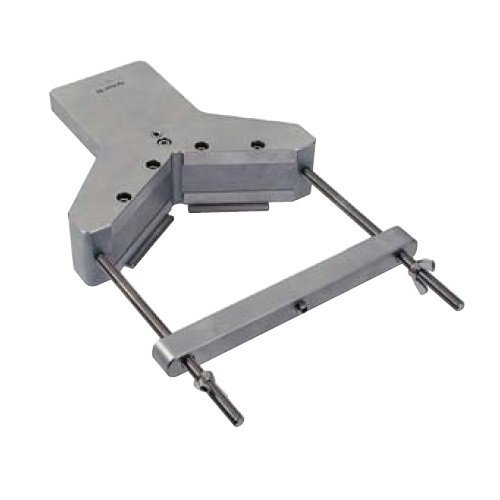

3R-208.6 Macro Vee Block
- Rust resistant steel hardened
- Equipped with 70x70x12.5 Macro reference element
- Maximum load weight 15 Kg
- Adjustable (up, down)
- Weight .. Kg

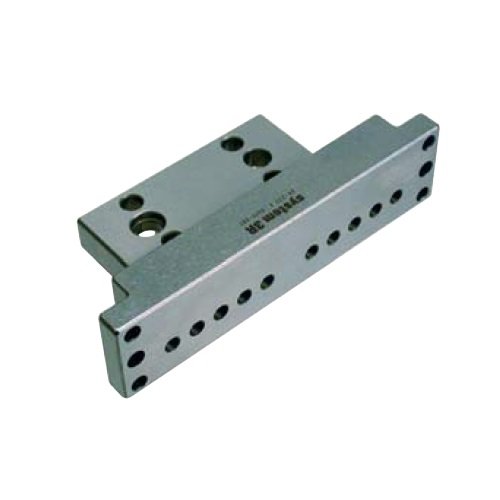

3R-237.2 Holder
- For fixture, workpiece or 3R-239.2, 3R-239.3,
3R-294.1, 3R-294.2, 3R-294.6 and 3R-402.1. - Recommended maximum workpiece weight 7 Kg
- Weight 0.6 Kg
3R-292.1 SuperVice

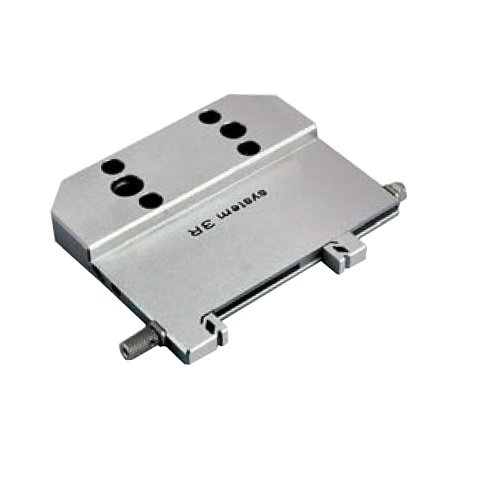

- Vice for horizontal clamping of rectangular workpieces <77 mm
- Recommended maximum workpiece weight 3 Kg
- Recommended tightening torque 3 Nm
- Weight 0.6 Kg
3R-292.2 SuperVice
- Vice for horizontal clamping of rectangular workpieces <100 mm
- Recommended maximum workpiece weight 5 Kg
- Recommended tightening torque 3.5 Nm
- Weight 0.9 Kg

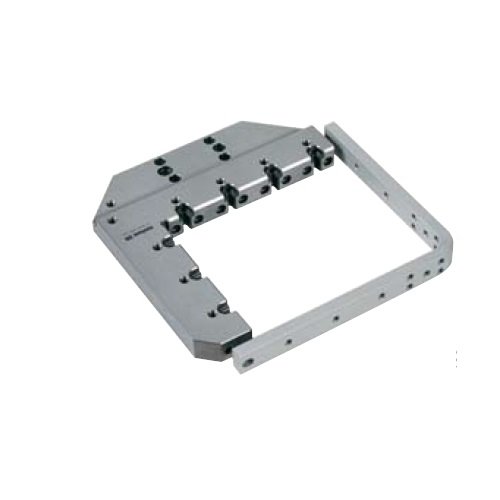

3R-292.23 Angled holder
3R-292.3 SuperVice
- Vice for horizontal clamping of rectangular workpieces <100 mm
- Recommended maximum workpiece weight 7 Kg
- Recommended tightening torque 7 Nm
- Weight 1.1 Kg
3R-292.31 SuperVice
- Vice with solid jaws for horizontal clamping workpieces <100mm
- Recommended maximum workpiece weight 7 Kg
- Recommended tightening torque 7 Nm
- Weight 1.1 Kg
3R-292.3S Universal holder
- Holder for round workpieces <90 mm
- Rectangular workpieces up to 100×90 mm
- Maximum workpiece weight 7 kg
- Recommended tightening torque 4 Nm
- Weight 2.3 Kg

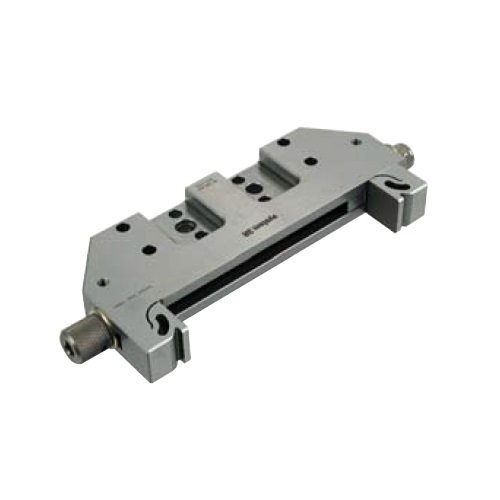

3R-292.6HP SuperVice Magnum
- Vice for horizontal clamping workpieces <155 mm
- Note: Mounts on HP, Magnum or MacroTwin levelling adapter
- Maximum workpiece weight 12 Kg
- Tightening torque 15 Nm
- Weight 2.8 Kg

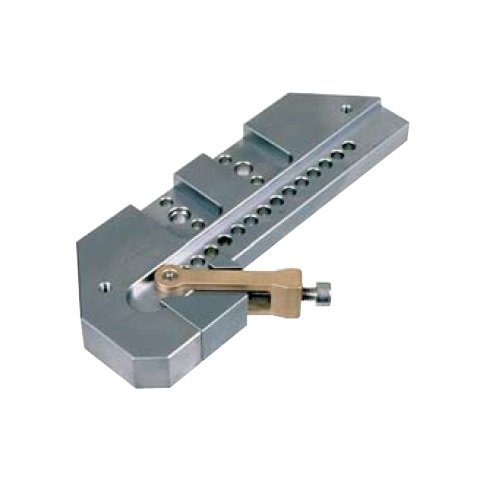

3R-292.6S SuperVice Magnum
- Vice for horizontal clamping of rectangular workpieces >150 mm
- Note: Mounts on HP, Magnum or MacroTwin levelling adapter
- Maximum workpiece weight 12 Kg
- Tightening torque 10 Nm
- Weight 2.7 Kg

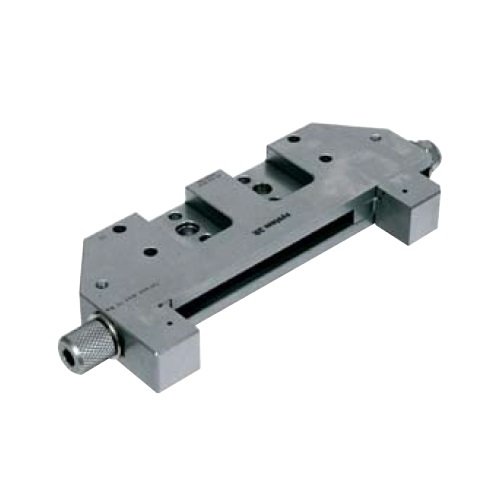

3R-292.61HP SuperVice
- Vice with solid jaws for clamping <150mm
- Maximum workpiece weight 12 Kg
- Recommended tightening torque 15 Nm
- Weight 2.8 Kg

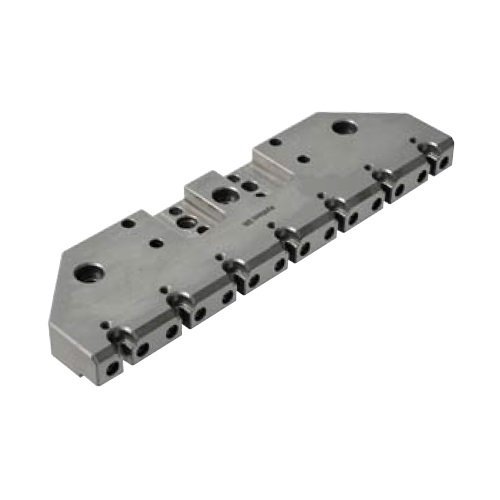

3R-292.66HP Magnum holder
- Supplemented with 3Ruler accessories
- Mounts on HP mounting head
- Weight 3 Kg
3R-292.92 SuperVice
- Vice with 30-degree dovetail connection
- Removable middle jaw allows clamping
- Maximum weight 7 Kg
- Tightening torque 7 Nm
- Weight 1.1 Kh

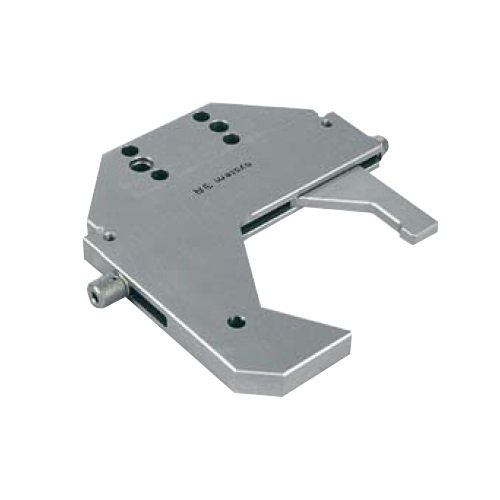

3R-293.3 SuperVice
- Vice for horizontal clamping of round workpieces 8-90 mm
- Recommended maximum workpiece weight 7 Kg
- Recommended tightening torque 7 Nm
- Weight 1.7 Kg
3R-293.33 Universal holder
- Holder for round workpieces 8-100 mm
- Rectangular workpieces up to 100 mm
- Recommended maximum workpiece weight 7 kg
- Recommended tightening torque 3 Nm
- Weight 1.5 Kg

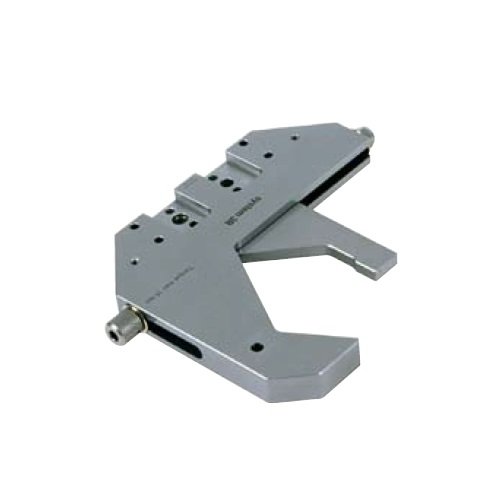

3R-293.6HP SuperVice Magnum
- Vice for horizontal clamping of round workpieces 15-155 mm
Note: Mounts on HP, Magnum or MacroTwin levelling adapter - Maximum workpiece weight 12 Kg
- Recommended tightening torque 15 Nm
- Weight 4.5 Kg
3R-294 Adapter
- For mounting 3R-294.1 on a levelling adapter
- For mounting 3R-294.2 on a levelling adapter
- For mounting 3R-294.6 on a levelling adapter
- Recommended maximum load 7 Kg
- Weight 0.6 Kg
3R-294.1 Vice
- For clamping work pieces up to 17 mm
- Mounts on 3R-237.2, 3R-294 or 3Ruler system
- Maximum work piece weight 2.5 Kg
- Recommended tightening torque 3 Nm
- Weight 0.5 Kg
3R-294.2 Vice
- Mounts on 3R-237.2, 3R-294, 3R-292.66HP
- Mounts in the 3Ruler system or Macro element
- Maximum workpiece weight 5 Kg
- Recommended tightening torque 3 Nm
- Weight 1.2 Kg
3R-294.3 Vice
- Vertical clamping of workpieces up to 100mm
- Maximum workpiece weight 7 Kg
- Recommended tightening torque 7 Nm
- Weight 0.7 Kg
3R-294.4 Vice
- Vertical clamping of workpieces up to 25mm
- Maximum workpiece weight 7 Kg
- Recommended tightening torque 3 Nm
- Weight 1.4 Kg
3R-294.6 Multiple holder
- For simultaneous mounting of four workpieces
Ø5-13 mm. Mounts on 3R-237.2, 3R-294, 3R-
292.66HP or a ruler in the 3Ruler system - Recommended tightening torque 3 Nm
- Weight 0.6 Kg
Spare parts

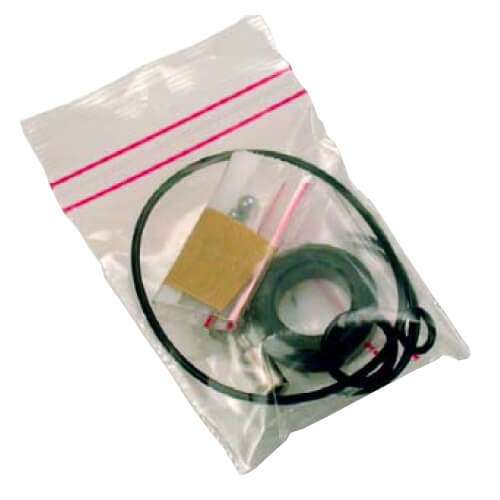

3R-SSP012 Service set 3R-602.10-1
- Spare part kit for 3R-602.10-1
- Complete set
- For yearly maintenance
3R-SSP034, spare part set Jaws for 3R-292.3
Movable jaws. Screw, nut and washer for 3R-292.3
3R-SSP035, spare part set Jaws for 3R-292.6HP
Movable jaws. Screw, nut and washer for 3R-292.6HP
3R-SSP036, spare part set Jaws for 3R-292.31
Movable jaws. Screw, nut and washer for 3R-292.31
3R-SSP037, spare part set Jaws for 3R-293.3
Movable jaws. Screw, nut and washer for 3R-293.3
