Mini, wereldwijd meest gebruikte referentiesysteem voor elektroden
Electrodehoudersysteem is nog steeds het Mini systeem.
Het productenprogramma garandeert exacte montage van de elektrodehouders in hydraulische opnamen.
Het Mini systeem is een ‘Reverse Reference System’ ( omgekeerd referentiesysteem), waarin de opname zich aanpast aan de elektrodehouder, reden waarom alle elektrodehouders exact gelijk moeten zijn – in diameter, rondheid en rechtheid – om te voldoen aan de nauwkeurigheidseisen.
Deze nauwkeurigheid wordt bereikt dank zij de twee ringvormige kamers van het hydraulische systeem, die gelijkmatig expanderen en voor een symmetrische blokkering zorgen t.o.v. de vaste Z-referentie met hoeklocatie.
Kenmerken
- Klemkracht 4 kN
- Repeteerbaarheid <0.002 mm
- Hoge nauwkeurigheid
- Spoeldruk 75 bar
Chucks
3R-321.5, Manual chuck
- Hydraulic chuck for mounting on machine spindle with 3R-A3620
- Fixed index positions 4×90°
- Flushing connection
- Air-blast cleaning of the Z-references
- Weight 1.8 Kg
3R-321.5, Manual lathe chuck
- Hydraulic chuck with set screws, for mounting on a lathe taper
- Fixed index positions 4×90°
- Weight 1 Kg

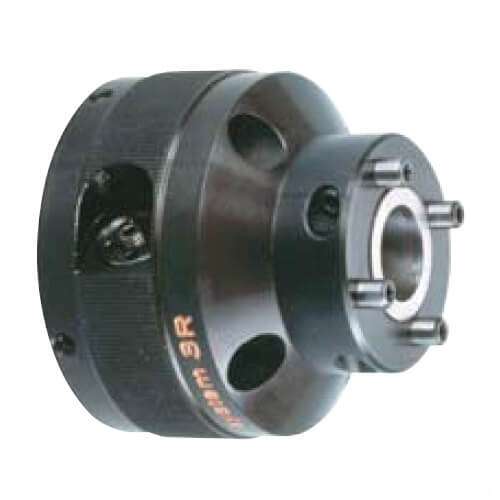

3R-321.4x90, Manual spindle chuck
- Manual Hydraulic chuck for mounting on machine spindle
- Fixed index positions 4×90°
- Flushing connection
- Weight 2.3 Kg
3R-321.46, Manual mini block chuck
- Manual hydraulic chuck for vertical or horizontal mounting
- Fixed index positions 4×90°
- Weight 2.3 Kg
Pallets
3R-23 Master pallet
- Ground C-reference
- Measuring length 100mm
- Weight 0.6 Kg
3R-314.2 Master pallet
- Ground C-reference
- Measuring length 96mm
- Weight 0.6 Kg
Spare parts
3R-322/25S Electrode holder Ø20 mm
- Holder with hardened reference part
- Unhardened electrode mounting part
- Flushing duct
- Supplied in sets of 30
- Weight 7 Kg
3R-322/50E Electrode holder Ø20 mm
- Holder with hardened reference part
- Unhardened electrode mounting part
- Flushing duct
- Supplied in sets of 30
- Weight 7 Kg
3R-322/50S Electrode holder Ø20 mm
- Holder with hardened reference part
- Electrode mounting part 50mm
- Flushing duct
- Supplied in sets of 30
- Weight 7.7 Kg
3R-322/100 Electrode holder Ø20 mm
- Holder with hardened reference part
- Electrode mounting part 100mm
- Flushing duct
- Supplied in sets of 10
- Weight 3.8 Kg
3R-311.4 Electrode holder Ø20 mm with 3-jaw chuck
- Holder for Ø0.1-3 mm electrodes
- Supplied in sets of 1
- Weight 0.3 Kg
3R-310EE Electrode holder Ø20 mm and flange Ø50 mm
- Holder with hardened reference part
- Electrode mounting part Ø50mm
- Flushing duct
- Supplied in sets of 10
- Weight 4 Kg
3R-463-5033 Electrode holder Ø20 mm and junior adapter
- Holder with hardened reference part
- Junior reference system
- Flushing duct
- Supplied in sets of 1
- Weight 0.6 Kg
3R-311.2 Electrode holder Ø20 mm with collet chuck ER20
- Chuck Ø20 mm for collets ER20
- With electrodes < Ø13 mm.
- Flushing duct
- Supplied in sets of 1
- Weight 0.2 Kg
3R-311.3 Electrode holder Ø20 mm with collet chuck ER16
- Chuck Ø20 mm for collets ER16
- With electrodes < Ø10 mm.
- Flushing duct
- Supplied in sets of 1
- Weight 0.2 Kg
