GPS240, vast referentiesysteem voor kleine tot middelgrote machines
- GPS240 voorziet uw machines van de vaste referenties die traditionele machinetafels niet hebben.
- Een praktisch en gebruikersvriendelijk systeem dat de insteltijden tot een minimum terugbrengt.
- Vergroot de machinecapaciteit en maakt automatische productie mogelijk.
- De gemakkelijk te hanteren aluminium pallets hebben referentie-elementen van gehard, hooggelegeerd staal.
- Blokkeermechanisme met ingebouwde zachte-landing functie.
Kenmerken:
- Max. werkstukgewicht 100 kg
- Klemkracht 30.000kN
- Repeteerbaarheid <0.002mm
- Hoge nauwkeurigheid
- Hoge stabiliteit
- Pallet voorbereid voor automatisering
- Max. palletafmetingen 300×300 mm
Chucks

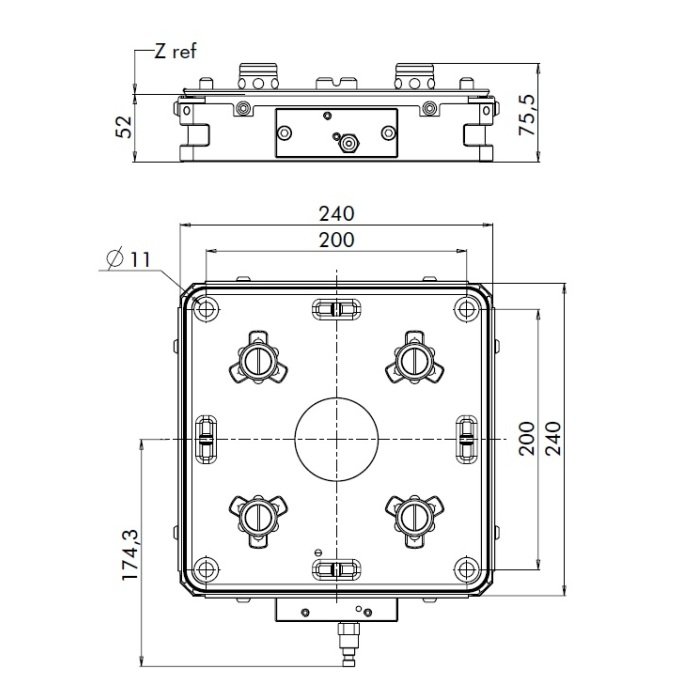

C219000 Pneumatic chuck GPS240, manual use
- Building-in height: 52 mm
- Required air pressure: 6 bar
- Clamping force 30 000 N
- Recommended actuator C810820 or C810710
- Weight: 17 kg

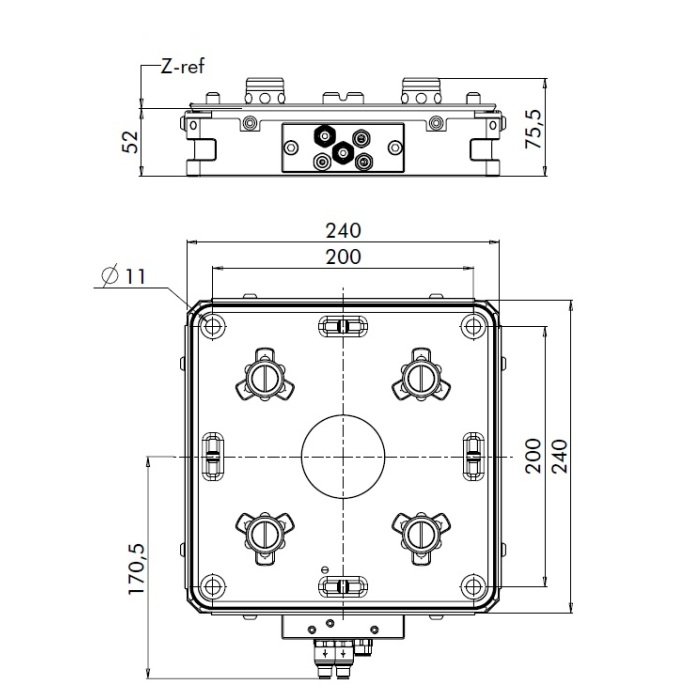

C219100 Automatic pneumatic table chuck GPS240
- Building-in height: 52 mm
- Required air pressure: 6 bar
- Clamping force 30 000 N
- Recommended actuator C810830
- Weight: 17 kg
C219200 Automatic pneumatic chuck GPS240
- Building-in height: 52 mm
- Required air pressure: 6 bar
- Air connections positioned centrally on the underside
- For applications on a rotating table
- Weight: 17 kg

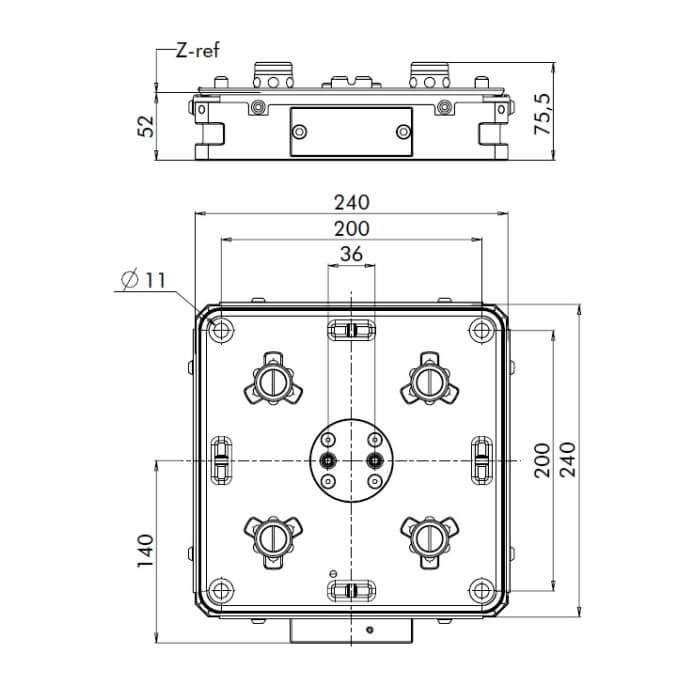

C219800 GPS 240 chuck met medium doorvoer
- Building-in height: 52 mm
- Required air pressure: 6 bar
- Air connections positioned centrally on the underside
- For applications on a rotating table
- Weight: 17 kg
C210060 GPS 240 dummy chuck
- Dummy chuck for clamping a GPS 240 pallet on a exchange or draining station.
- Required air pressure 6 bar
- .
- .
- Weight 9.5 kg.

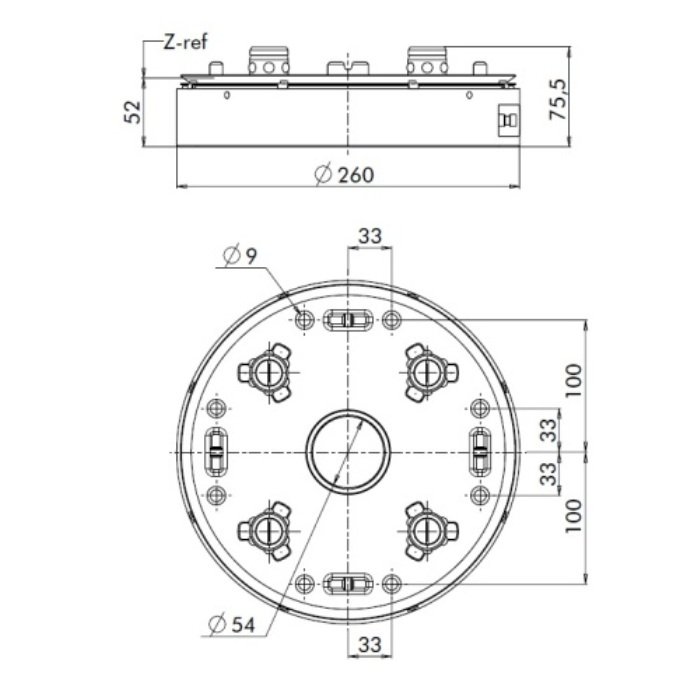

C217100 Round pneumatic chuck GPS240 with hole Ø54
- Building-in height: 52 mm
- Required air pressure: 6 bar
- Clamping force 30 000 N
- Recommended actuator C810820 or C810710
- Weight: 16 kg

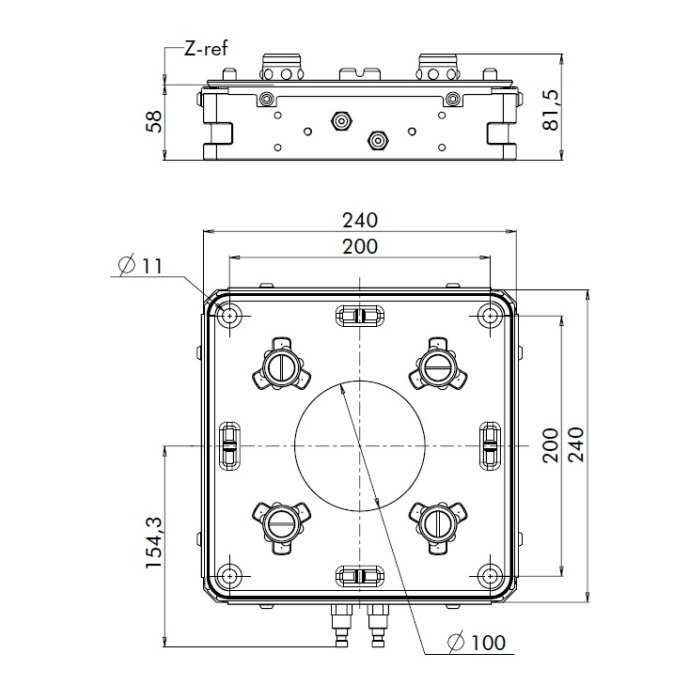

C219400 Automatic pneumatic chuck GPS240 with hole Ø100
- Building-in height: 58 mm
- Required air pressure: 8 bar
- Clamping force 30 000 N
- Recommended actuator C810830
- Weight: 17 kg

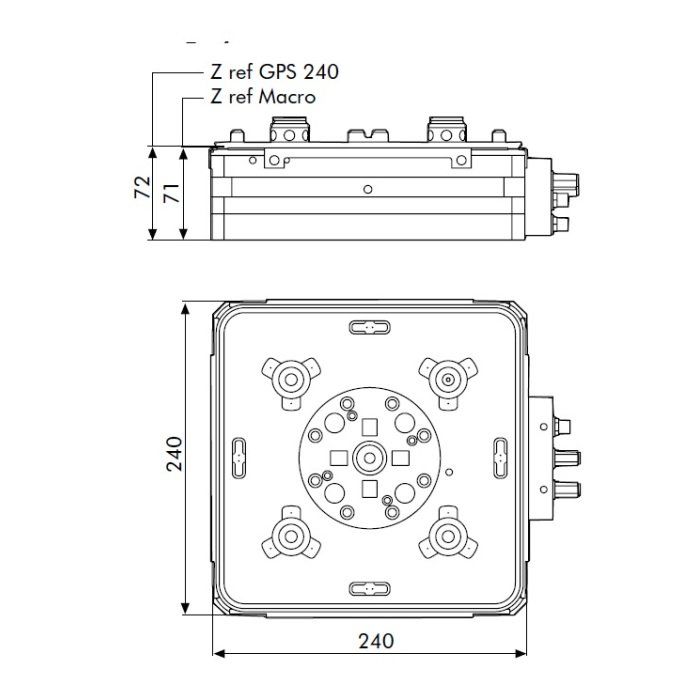

C219600 Automatic pneumatic chuck with built-in Macro
- Intended mainly for measuring machines.
- Required air pressure: 6 bar
- Clamping force 30 000 N
- Recommended actuator C810830
- Weight: 22 kg
Pallets
C694100 GPS 240 pallet for EDM and grinding
- X/Y-centring, spring loaded pin
- Flatness 0.02 mm
- Work piece weight 100 kg
- Includes C531500 sealing plugs
- Weight 4 kg

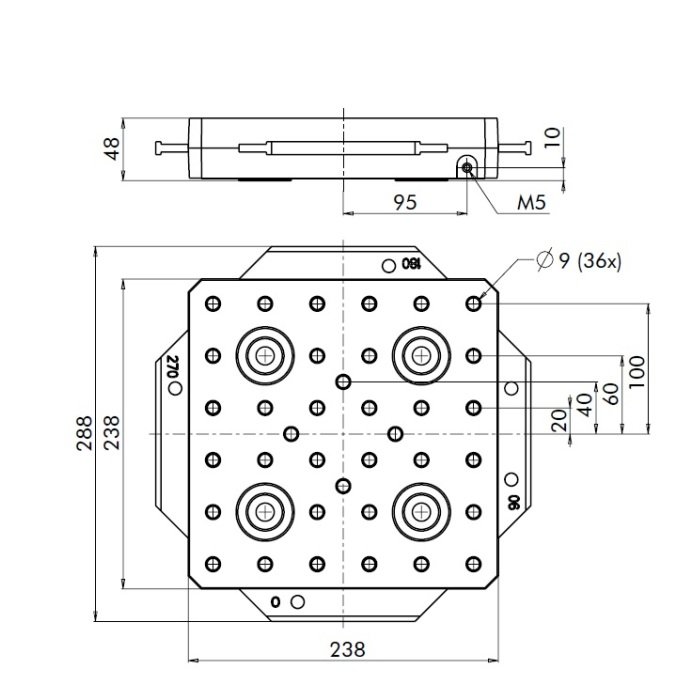

C694400 GPS 240 Pallet Precision Production
- X/Y-centring with coined cam
- Flatness 0.02 mm
- Work piece weight 100 kg
- Includes C531500 sealing plugs
- Weight 4 kg

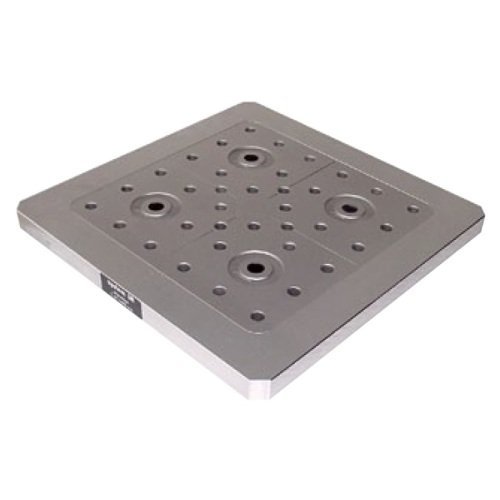

C694600 GPS 240 Pallet Precision Production 300x300
- X/Y-centring with coined cam
- INcludes code carrier fixture
- C960770 included
- Flatness 0.02 mm
- Weight 6 kg
C694810 GPS240 pallet for fixtures
- X/Y-centring with spring cam
- Construction height 46 +/- 0,01mm
- Adapted for automatic change
- Ready for code carrier C960740
- Weight 7,2 kg
C694610 GPS 240 Pallet 240x240 mm
- Ground solid pallet
- Construction height 48.0 ±0.005 mm
- X/Y-centring with coined cam
- Prepared for atomation
- Flatness 0.01 mm
- Ready for code carrier fixture C 960 740
- Weight 7.4 kg.
- Recommended workpiece weight 100 kg.
C694640 GPS 240 Pallet 300x300mm
- Ground solid pallet
- Construction height 48.0 ±0.01 mm
- X/Y-centring with coined cam
- Flatness 0.02 mm
- Prepared for automation
- Ready for code carrier fixture C 960 740
- Weight 9 kg.
- Recommended workpiece weight 100 kg.
C697100 GPS 240 round pallet
- Round coined aluminium pallet
- Mounting holes, see drawing
- Flatness 0.01 mm
- Work piece weight 100 kg
- Weight 6 kg

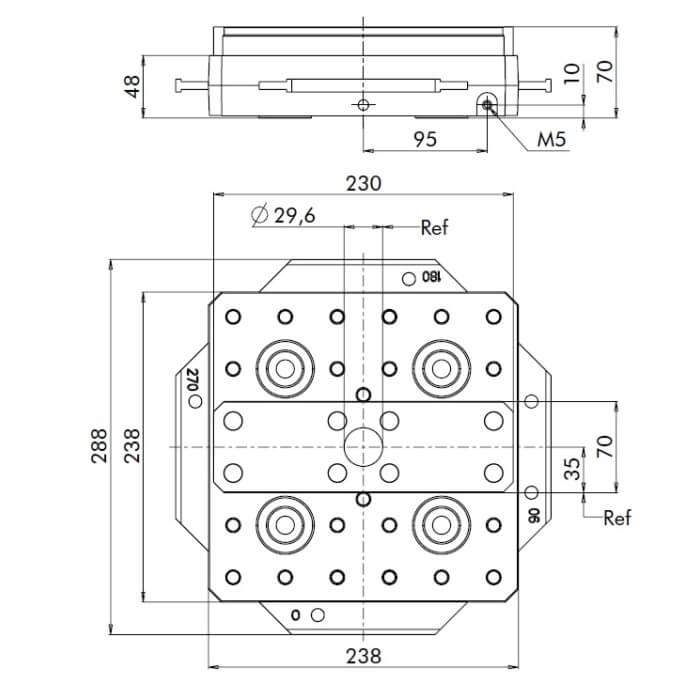

C864600 Master pallet
- Ground reference ruler
- Ground indication hole
- Adapted for automatic changing
- Ready for code carrier
- Weight 9 kg
C522520 Pallet with integrated macro chuck
- Material: aluminium / steel
- Pallet adapter
- For macro 54×54 / 70x70mm
- Height: 5xmm
- Weight 8,5 kg
C522560 Pallet with integrated GPS 120/70 chuck
- Material: aluminium / steel
- Adapter pallet adapter
- For GPS120/70 pallets
- Height: 54mm
- Weight 8,1 kg
Spare parts
S220000 Revision set GPS240, serie C219xxx
- Spare part set for C219xxx
- Complete set
- For yearly maintenance
S220050 Revision set GPS240, serie C216xxx
- Spare part set for C216xxx
- Complete set
- For yearly maintenance
C219007 GPS 240 sealing ring
- Spare part set for C219xxx
- The chuck seal is a wear part which should be replaced once a year.
- Material: Viton
- Supplied singly
C531210 Reference protectors (set 20 pieces)
- Spare part set for C219xxx / C216xxx
- 20 pieces per set
- For yearly maintenance
C531250 GPS 240 seal (set 20 pieces)
- Spare part set for C219xxx / C216xxx
- 20 pieces per set
- For yearly maintenance
C531500 GPS240 sealing plug (20 pieces)
- Spare part set for C219xxx / C216xxx
- 20 pieces per set
- For yearly maintenance
C800220 protection cap
- Protection cap voor GPS240 opname
