3Ruler systeem, de eerste mechanische referentiesysteem voor WEDM
System Ruler systeem – 3Ruler – werd ontwikkeld voor het vonken van middelgrote en grote werkstukken waarbij een directe montage op de Z-nul tafel van de machine wordt gemonteerd. Door een zeer uitgebreid pakket aan accessoires en toebehoren heeft u een on-geëvenaard scala aan opspanmogelijkheden. Met de hulp van het 3Ruler systeem, kunnen rechthoekige of ronde werkstukken, groot of klein, lichtgewicht of zwaar, gemonteerd worden op de machine, zonder risico van botsing. Systeem 3R’s WEDM accessoires verbetert de veelzijdigheid en de productiviteit van uw machine door praktisch de insteltijden te elimineren.
Kenmerken
- Max. werkstuk gewicht 25 kg
- Repeteerbaarheid <0.01mm
- Hoge nauwkeurigheid
- Hoge stabiliteit
- Nieuw systeem voor hogere spoeldruk
Products
3R-200.1J-U Reference element WEDM
- Universal 140 mm reference element for machines with zero-line table
- With oval holes
- For all machines that have M8 holes
- In the machine table 30 to 40 mm from the edge of the table.
- Weight 0.4 kg
3R-200.XJ.X Reference element WEDM
- Reference elements for machines with zero-line table
- The length (L), hole spacing (C) and hole edge spacing (B)
- The hardened reference elements are matched to the machine in question
- Note: When ordering, state machine manufacturer and type
- Supplied with end stops
3R-218S Holder set
- Can be moved infinitely along the entire reference element
- Weight per set 0.4 kg
3R-225.2 Reference stop
- For positioning 3Ruler on the references
- The stops have adjusting screws
- Supplied in sets of two
- Weight per set 0.6 kg
3R-239.1 Ruler vice
- Movable jaws
- For mounting two rectangular workpieces at the same time
- Detachable Z support tabs
- Ensure simple setting-up
- Weight 1 kg
3R-239.2 Low-profile holder
- For clamping thin workpieces
- Hardened
- Clamping range 0-27 mm
- Supplied in sets of four
- Weight per set 0.6 kg
3R-239.11 Double ruler vice
- Movable jaws
- For mounting two rectangular workpieces at the same time
- Detachable Z support tabs
- Ensure simple setting-up
- Weight 1 kg
3R-239.11 Double ruler vice
- Movable jaws
- For mounting two rectangular workpieces at the same time
- Detachable Z support tabs
- Ensure simple setting-up
- Weight 1 kg
3R-239.3 V-holder
- For clamping round workpieces
- Hardened
- Clamping range Ø25-300 mm
- Weight 0.9 kg
3R-239.22 Zero-line support tab 5 mm
- Hardened
- Maximum workpiece weight per stop 50 kg
- Supplied in sets of two
- Weight .. kg
3R-294.1 Vice
- For work pieces up to 17 mm
- Mounts on 3R-237.2, 3R-292.12, 3R-292.66HP, 3R-294
- Maximum work piece weight 5 kg
- Tightening torque 3 Nm
- Weight 0.5 kg
3R-294.2 Vice
- Mounts on 3R-237.2, 3R-292.12, 3R-292.66HP, 3R-294
- Hardened ruler in the 3Ruler
- Maximum work piece weight 5 kg
- Torque 3 Nm
- Weight 1.2 kg
3R-294.6 Multiple holder
- Mounting 4 workpieces Ø5-13 mm
- Or a ruler in the 3Ruler system
- Mounts on 3R-237.2, 3R-292.12, 3R-292.66HP, 3R-294
- Tightening torque 3 Nm
- Weight 0.6 kg

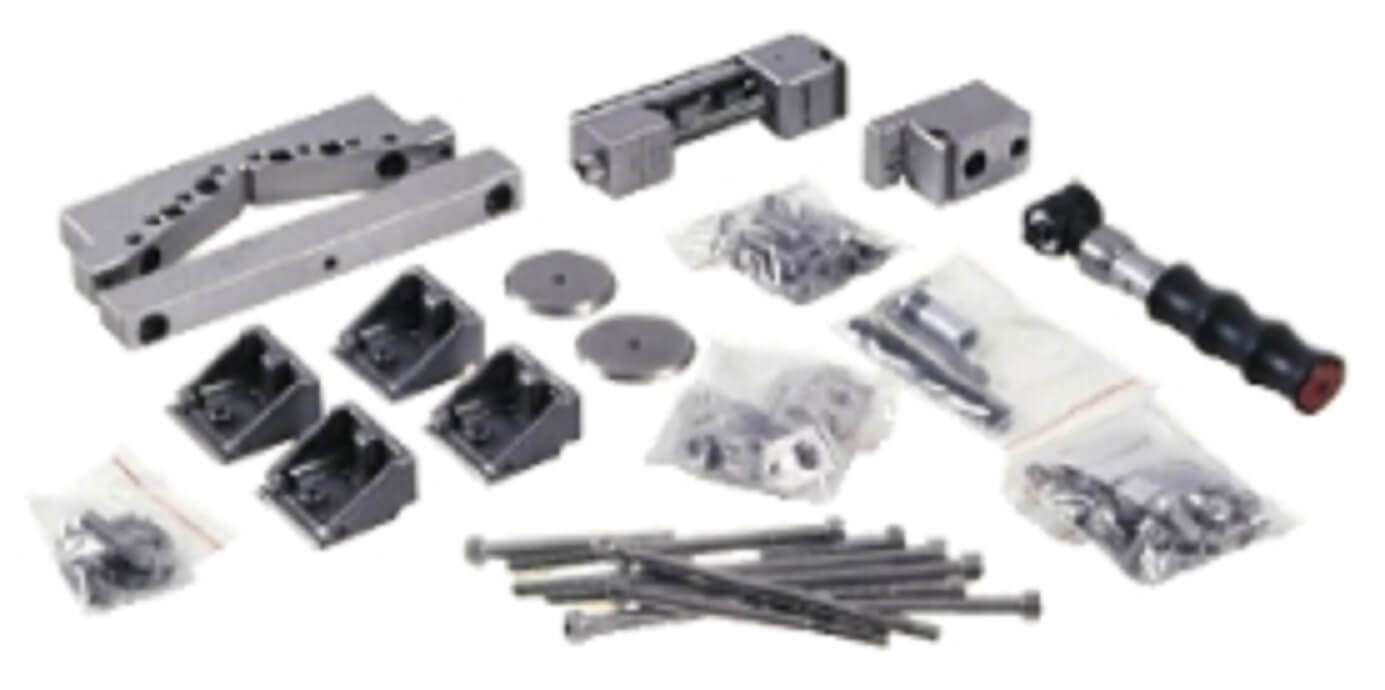

3R-239.20 3Ruler kit
- Kit for clamping rectangular
- Round or thin work pieces
Contents:
- 3R-239.1 Ruler vice
- 3R-239.2 Low-profile holder
- 3R-239.3 Vee holder
- 3R-914-10L Torque wrench 8 Nm
- 3R-33-03 Allen key 3 mm
- 3R-33-04 Allen key 4 mm
3R-209-610.1
- 1x 3R-209-610
- 1x 3R-333-03
- 1x 3R-333-05
- Several extra material
3R-209-860.1
- 1x 3R-209-860
- 1x 3R-333-03
- 1x 3R-333-05
- Several extra material

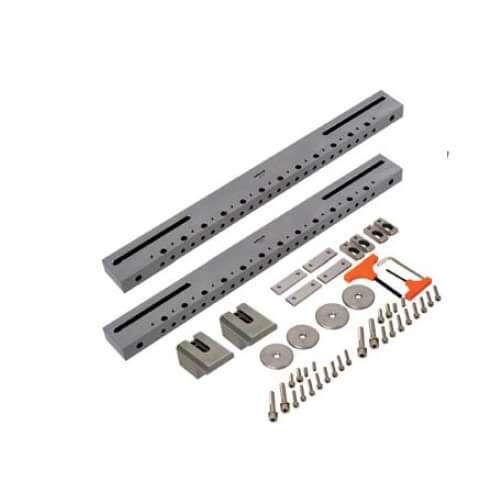

3R-209-610.2
- 2x 3R-209-610
- 1x 3R-333-03
- 1x 3R-333-05
- Several extra material
3R-209-610.3
- 1x 3R-209.610
- 2x 3R-261.1
- 1x 3R-333-03
- 1x 3R-333-05
- Several extra material
3R-209-860.3 Econo ruler set
- 1x 3R-209.860
- 2x 3R-261.1
- 1x 3R-333-03
- 1x 3R-333-05
- Several extra material
3R-209-610.4
- 1x 3R-209.610
- 1x 3R-261.1
- 1x 3R-209.1
- 1x 3R-333-03
- 1x 3R-333-05
3R-209-860.4 Econo ruler set
- 1x 3R-209.860
- 1x 3R-261.1
- 1x 3R-209.1
- 1x 3R-333-03
- 1x 3R-333-05
3R-209.33 Universal holder econo
- For mounting round and square work pieces
- Diameter 15-110mm or 120x120mm
- Hardened steel
- Weight 1.5 kg
3R-209.1 Vice econo
- For square work pieces
- Max. work piece weight 15 kg
- Max. work piece weight with 2 vices 200 kg
- Torque 8Nm
- Weight 0.7 kg
3R-209.3 V-holder econo
- For mounting round work pieces
- Diameter 25-130mm
- Hardened steel
- Weight 0.9 kg

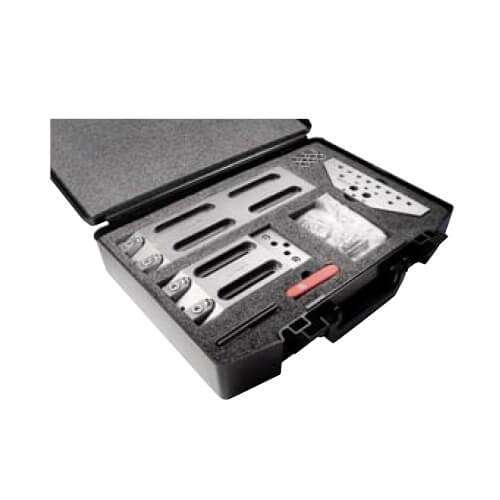

S150550 Set ICS Zeroline Go!
- For mounting directly on the machine table
- C 666 020 Clamping element 300 mm x1
- C 660 040 Clamping element 180 mm x1
- C 642 050
- N 150 000 Stop, +4 mm x4
- C 666 022 Stop, zero line x4
- S 150 350 Set of screws x1
- N 153 010 Bush M8 x6
- N 153 020 Bush M6 x6
- E 100 007 Set of Allen keys x1

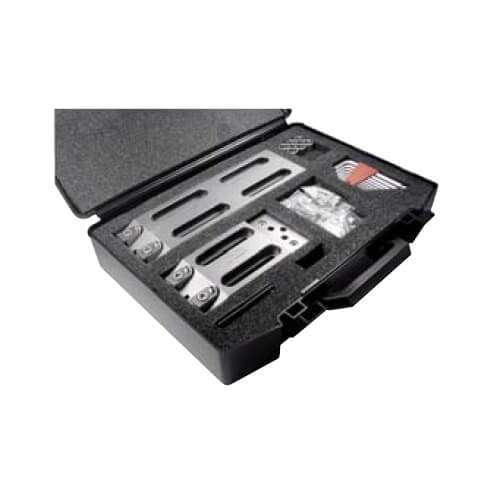

S150500 Set ICS Standard Mini
- For mounting directtly on the machine table
- C 666 020 Clamping element 300 mm x1
- C 660 040 Clamping element 180 mm x1
- N 150 000 Stop, +4 mm x4
- C 666 022 Stop, zero line x4
- S 150 350 Set of screws x1
- N 153 010 Bush M8 x6
- N 153 020 Bush M6 x6
- E 100 007 Set of Allen keys x1
C666040 Clamping element
- Directly to the machine table.
- For clamping ICS B and ICS C holders
- Z-reference on -4mm or 0 mm
- Maximum weight 50 Kg
- Weight 3.1 kg
C666020 clamping element
- Directly to the machine table
- For clamping ICS B and ICS C holders
- Z-reference on -4mm or 0 mm
- Maximum weight 50 Kg
- Weight 5.3 kg
3R-239-XXX 3Ruler
- The rulers are available in various lengths (-XXX)
- For different machines
- The cross-section is matched to the length to ensure optimal stability
| XXX = length (mm) | 371-595 | 596-950 | > 950 | |
| Width (mm) | 45 | 60 | 86 | 86 |
| Height (mm) | 30 | 30 | 36 | 36 |
| Eccentric stops supplied | 1 | 1 | 1 | 1 |
| Quick fasteners supplied | 2 | 2 | 2 | 2 |
| Zero line tabs supplied | 2 | 2 | 3 | 5 |
| 5 mm tabs supplied | 2 | 2 | 2 | 3 |
| Clamps supplied | 2 | 2 | 3 | 5 |
3R-239-XXX-D Double sided 3Ruler
- Double sided rulers are available in various lengths (-XXX)
- For different machines
- The cross-section is matched to the length to ensure optimal stability
- With these rulers, accessories can be mounted on both sides of the ruler
| XXX = length (mm) | 371-595 | 596-950 | > 950 | |
| Width (mm) | 45 | 60 | 86 | 86 |
| Height (mm) | 30 | 30 | 36 | 36 |
| Eccentric stops supplied | 2 | 2 | 2 | 2 |
| Quick fasteners supplied | 2 | 2 | 2 | 2 |
| Zero line tabs supplied | 4 | 4 | 4 | 10 |
| 5 mm tabs supplied | 4 | 4 | 4 | 6 |
| Clamps supplied | 4 | 4 | 6 | 10 |
