Dynafix, fix reference system for middle sized machines
- Dynafix provides your machines with the fixed references traditional machine tables do not have.
- A practical and user friendly reference system which minimises setting-up times.
- Increases machine capacity and makes automated production possible.
- Dynafix offers air-blast cleaning of the Z-references and peripheral sealing.
- The easily-handled aluminium pallets have reference elements of hardened, high-alloy steel.
- Locking mechanism with built-in soft landing function.
Features:
- Max. work piece weight 250Kg
- Clamping force 60.000kN
- Repeatability <0.002mm
- High accuracy
- High stability
- Pallet prepared for automation
- Maximum product size 400×400 ( bigger on request )
Costumer experience
Company: Landes High end Machining
Website: www.landes.nl
Machines: 3x DMG
Robots: 3x WorkMaster, 40 positions
Software: Cellmaneger with chip-ID
Tooling: Dynafix
Mr. John van de Laan:
Founder of Landes
“For automation you need a stable and reliable reference system, after testing the dynafix system we where able to take the next step in automation. The investments brought us much more productivity”
machine: DMG 70eVo
Robot: WorkMaster with Cellmanger
Chucks
3R-770-1 Automatic pneumatic table chuck
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Recommended actuator 3R-611.41 or 3R-611.2
- Air-blast cleaning of the Z-references
- Weight 24.5 Kg
3R-770-4 Automatic pneumatic table chuck, with grinded reference system
- No need for reference pallet
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Air-blast cleaning of the Z-references
- Weight 24.5 Kg
3R-770-5 Automatic pneumatic table chuck, air connection from bottom chuck
- Special for 5 -axes machines
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Air-blast cleaning of the Z-references
- Weight 24.5 Kg

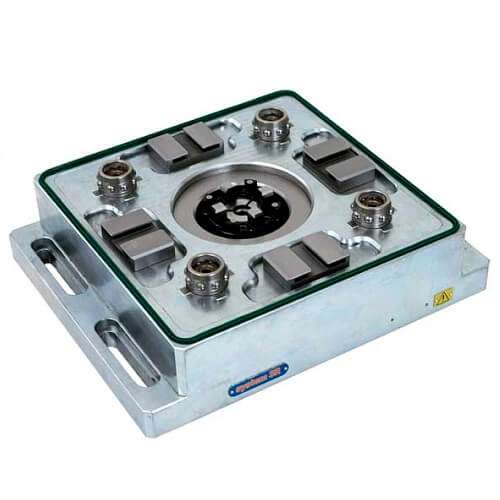

3R-770.19-1 Automatic pneumatic chuck with 3Refix holes Ø20.
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Recommended actuator 3R-611.41 or 3R-611.2
- Air-blast cleaning of the Z-references
- Weight 24.5 Kg
3R-90576.05 Automatic pneumatic table chuck, for chuck adapter 3R-90356.xx
- 2 extra air channels ( total 4)
- Without fixation holes
- Fixed index positions 4×90°
- Air-blast cleaning of the Z-references
- Weight 23.5 Kg
3R-90356.10 Automatic pneumatic table chuck, for chuck adapter 3R-90356.xx
- 2 extra air channels ( total 4)
- With fixation holes
- Fixed index positions 4×90°
- Air-blast cleaning of the Z-references
- Weight 27 Kg
3R-770.19-1 Automatic pneumatic table chuck with 3Refix holes Ø20
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Recommended actuator 3R-611.41 or 3R-611.2
- Air-blast cleaning of the Z-references
- Weight 24.5 Kg

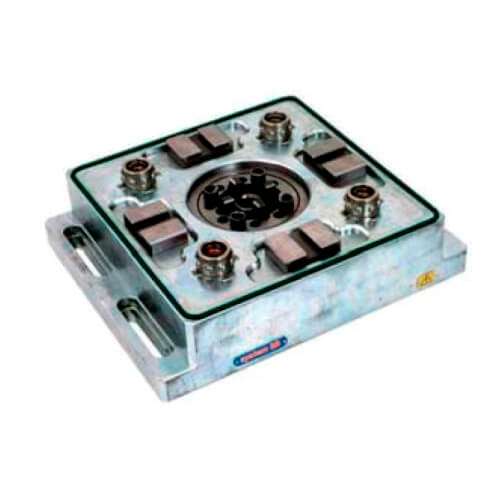

3R-770.46-1 Automatic pneumatic table chuck with integrated macro-combi
- Used on measuring machines for presetting
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Air-blast cleaning of the Z-references
- Weight 32 Kg
3R-770.6-1 Automatic pneumatic table chuck with integrated macro
- Used on measuring machines for presetting
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Air-blast cleaning of the Z-references
- Weight 32 Kg

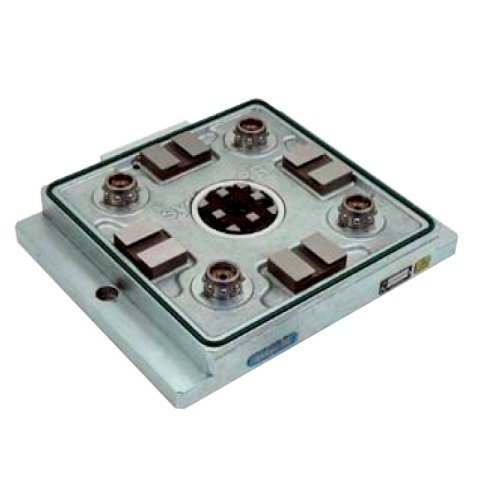

3R-20129 Automatic pneumatic chuck with integrated manual macro
- Used on measuring machines for presetting
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Air-blast cleaning of the Z-references
- Weight 32 Kg
3R-20130 Automatic pneumatic table chuck with centre hole Ø110mm
- Centre hole Ø110mm
- Required air pressure 6±1 bar
- Fixed index positions 4×90°
- Air-blast cleaning of the Z-references
- Weight 32 Kg
3R-D20167 Dummy chuck
- Required air pressure 6±1 bar
- Holding pallet on loading station
- Holding pallet in washing station
- Weight 32 Kg
Pallets
3R-771.2 pre-finished pallet 280x280 mm
- Anodised aluminium pallet
- For automatic changing
- Flatness 0.04 mm
- Thickness +0.5/-0 mm
- Weight 6 kg
3R-772.2 grinded pallet 280x280 mm
- Anodised aluminium pallet
- For automatic changing
- Flatness 0.005 mm
- Thickness -0.1/-0.14mm
- Weight 6 kg
3R-CH771.34 pallet 350x350 mm
- Anodised aluminium pallet
- For automatic changing
- Height 50.1mm
- Thickness +0.5/-0 mm
- Weight 12.1 kg
3R-DE772-T8.40 Pallet with T-slots 280x280 mm
- Anodized aluminium pallet
- Anodized aluminium T-slot plate
- T-slots M8 and pitch 40mm
- Adapted for automatic changing
- Weight 14 kg

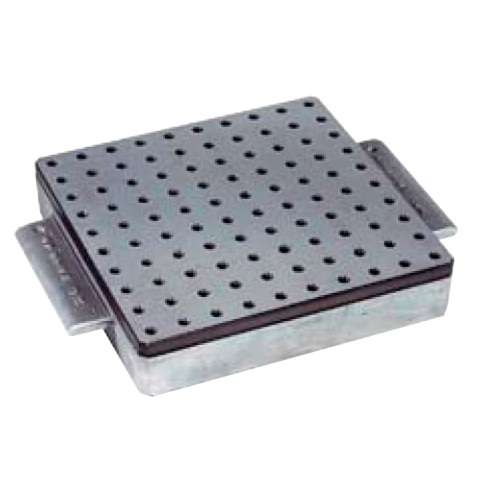

3R-772-M8.28 Pallet 280x280 mm
- Hardened steel pallet
- With 139x M8 threads, pitch 20mm
- Adapted for automatic changing
- Ready for code carrier
- Weight 14.5 kg
3R-772.1-MT Magnetic table
- Two independent magnetic fields
- Low magnetic field, 3 mm
- Supplied mounted on 3R-772.1
- For automatic changing
- Clamping force 100 N/cm2 (JIS)
3R-776.1-2 Master pallet
- Ground reference ruler
- Ground indication hole
- Adapted for automatic changing
- Ready for code carrier
- Weight 10.5 kg
90356.22 Chuck adapter dynafix-macro
- Chuck adapter dynafix-macro
- For 90356.10 or 90576.05
- For automatic changing
- Required air 6±1 bar
- Cleaning of the Z-references
90356.20 Chuck adapter dynafix-magnum
- Chuck adapter dynafix-magnum
- For 90356.10 or 90576.05
- For automatic changing
- Required air 6±1 bar
- Cleaning of the Z-references
Spare parts

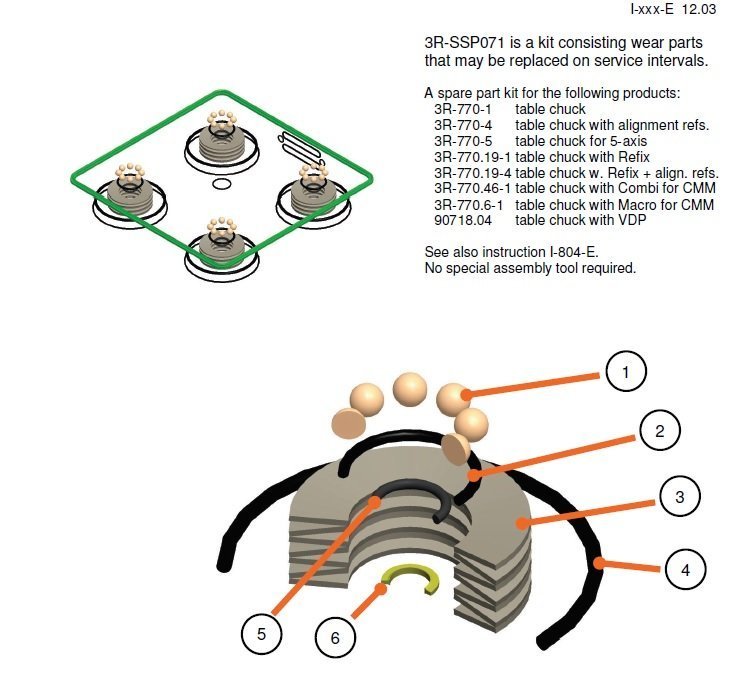

3R-SSP071 Dynafix revisiion set
For the following products:
- 3R-770-1
- 3R-770-4
- 3R-770-5
- 3R-770.19-1
- 3R-770.19-4
- 3R-770.46-1
- 3R-770.6-1
- 90718.04
- See instruction I-804-E
3R-12997-00 sealing for dynafix
Sealing ring for dynafix 3R-770
3R-20829-00 sealing for dynafix
Sealing ring for dynafix 3R-770-1 / 770-4 / 770.19-x
